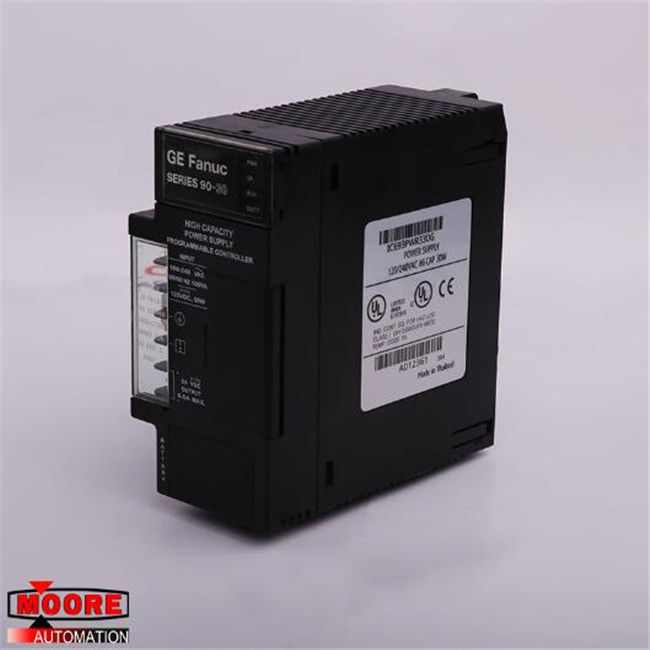

IC693PWR330 GE High Capacity Power Supply

IC693PWR330 GE High Capacity Power Supply

⇒ Click here for good price IC693PWR330

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

IC693PWR330 is a High Capacity Power Supply with 30 watts output and 120/240 VAC/125 VDC Input. There are applications that might need high +5V current capacity which may not be present with the standard supply(IC693PWR321).Therefore, this high capacity power supply permits each one of the 30 watts to be utilized from the +5V supply. IC693PWR330 can function from an input voltage source within the range of 85 to 264 VAC or 100 to 300 VDC. This power supply offers a +5 VDC output, +24 VDC Relay power outputs which distribute power to circuits on Series 90-30 Output Relay modules. An Isolated +24 VDC utilized internally by some modules may be used to offer external power for 24 VDC Input modules. IC693PWR330 has field Wiring Connections for the AC/DC Input Power Supplies. These two power supplies consist of 6 terminals used for user link up. These links include; AC Power Source, 20 VAC power source, and ground wires from the 240 VAC power source. They are attached to the system via the top 3 terminals on the front of the power supply. Their sensitivity to an AC/DC input power supply is normally low.

IC693PWR330 contains input overvoltage protection devices which have an internal connection on pin 4 found on the user terminal strip. This pin is linked to pin 3 with the offered strapped jumper that is well set up at the company. The strapped jumper can be removed to make the character nonfunctional in case overvoltage protection is not needed from both pins 3 and 4. It also requires overcurrent protection which is offered by the 5V logic output which is electronically limited to 3.5 amps (7 amps for high capacity supplies). Whenever there is excess load it is sensed on the inside which may lead to shutting down of the power. An internal fuse in the input acts as a power back up in case of such occurrences. It also safeguards the power supply from internal supply faults.
