DS200TCQCG1BJF DS200TCQCG1B GE RST Overflow Board
⇒ Click here for good price DS200TCQCG1BJF
| Brand/Manufacturer |
GE/USA |
| Part Number |
DS200TCQCG1BJF
|
| Alternate Part Number |
DS200TCQCG1BJF |
| Description |
MOTOR SERVO |
| Dimennsions |
28x21.2x3.5cm
|
| Weight |
0.46kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

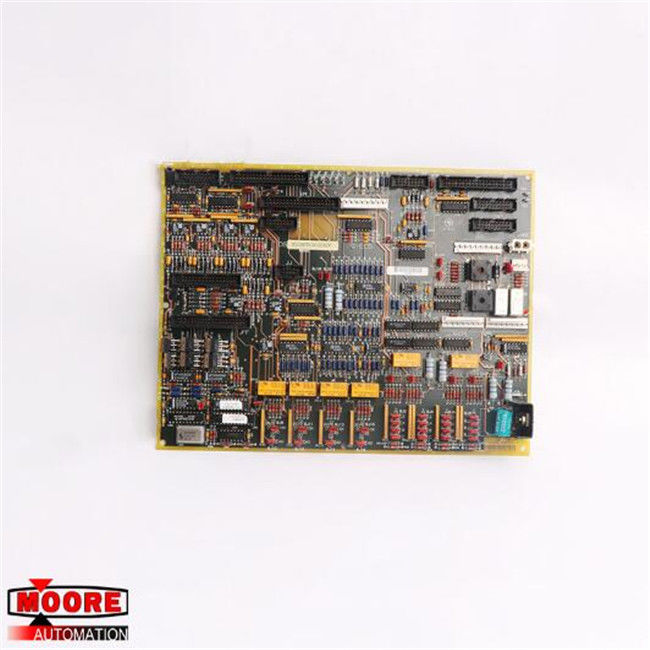

The GE RST Overflow Board DS200TCQCG1BJF is populated with 24 jumpers and 3 40-pin connectors. It also has 3 34-pin connectors and 1 16-pin connector. The ID assigned to the 16-pin connector is JC. The IDs assigned to the 40-pin connectors are JFF, JE, and 6PL. The GE RST Overflow Board DS200TCQCG1BJF also contains several relays that switch circuits on the board on and off. The relays require no maintenance and are soldered to the board with leads. The IDs of the 34-pin connectors are JFF, 1PL, and JA. The 40-pin connectors and 34-pin connectors attach to ribbon cables that connect the GE RST Overflow Board DS200TCQCG1BJF to other boards and components in the drive. When you replace the board it is important to the maintain the cable routing that is arranged in the drive for the cables. Because the ribbon cables carry signals improper routing can introduce interference from power cables that are routed too close to the signal cables. Interference happens when signal and power cables are routed parallel to each other. It is best keep them separated. If they must come in contact to each other, have them cross each other at a 90 degree angle only.
The other concern is that the drive depends on free flowing air to carry away heat generated by the components, including the motor. The ribbon cables might block the air flow if they hinder air flow at critical areas of the interior of the drive. This would include spaces around the motor or near air vents where the air exits or enters the drive.
