| Place of Origin | USA |
| Brand Name | GE |
| Certification | CO.CQ |
| Model Number | IC693ALG391 |

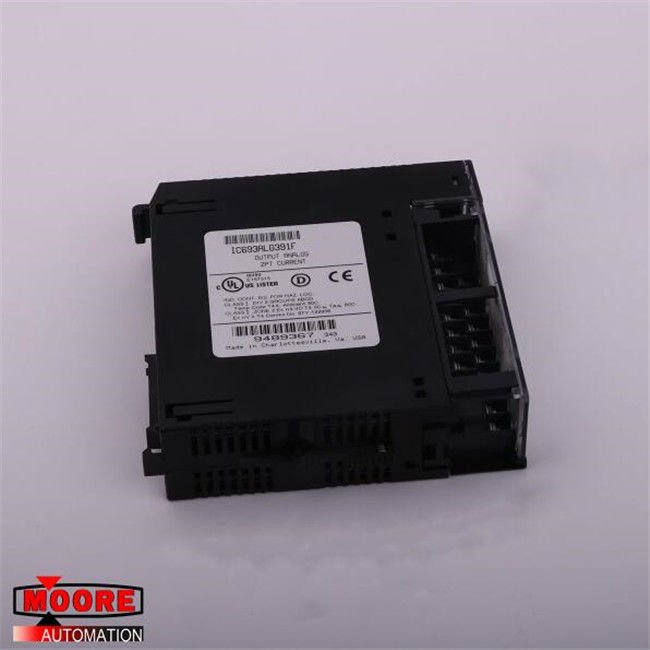

IC693ALG391 GE 2-Channel Analog Current Output Module
⇒ Click here for good price IC693ALG391
| Brand/Manufacturer | GE/USA |
| Part Number |
IC693ALG391 |
| Alternate Part Number | IC693ALG391 |
| Description | MOTOR SERVO |
| Dimennsions |
3.6x13x13.5cm |
| Weight | 0.35 kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
IC693ALG391 is a 2-Channel Analog Current Output module for the Series 90-30 Programmable Logic Controller. It offers two output channels with each output having the ability to convert 12 bits of binary (digital) data into an analog output for use as needed by many applications. IC693ALG391 is able to give out outputs ranging from 0 to 20 mA. The converted signal has a resolution of 12 bits binary. However, the sign bit is not needed when converting the output. During each scanning process, the two channels are updated. The %AQ register has 13 essential bits that are changed to sign magnitude by the PLC and forwarded to the module. The D/A converter uses 12 of the bits while the thirteenth bit (sign) is utilized to check whether negative data has been forwarded to the module.
If IC693ALG391 receives negative data, it outputs the low end of the current range of 4 mA to 20 mA range. The software tends to reject any value more than 32767 keyed in the modules. The IC693ALG391 gives two output ranges that are 4 and 20 mA. These two output ranges have user information laid down to make sure that a count of 0 is equal to 4 mA and a count of 32000 is equal to 20 mA. Every 1000 additions equal to 0.5 mA. In case the CPU is switched to STOP mode or RESET, when measuring Current Output, 4 to 20 mA Output, 0 to 20 mA the condition of the module changes to either Default to 0/4MA or Hold-Last-State. Choosing the suitable condition is created by arranging the DEF0/4 jumper on the detachable terminal board connector on the module.
