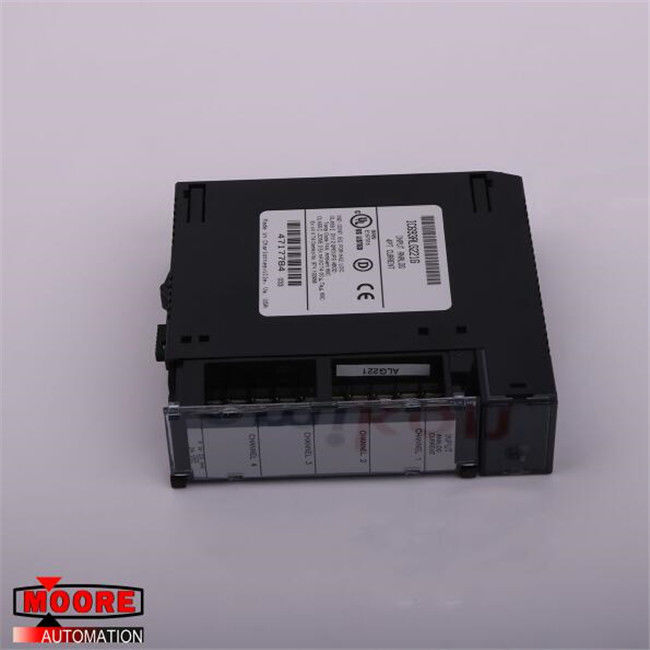

IC693ALG221 GE Analog Current Input Module
  • IC693ALG221  GE  Analog Current Input Module
  • IC693ALG221  GE  Analog Current Input Module

IC693ALG221 GE Analog Current Input Module

Place of Origin USA
Brand Name GE
Certification CO.CQ
Model Number IC693ALG221
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
IC693ALG221
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
GE
Weight:
4lbs
High Light:

IC693ALG221

,

GE Input Module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



IC693ALG221 GE Analog Current Input Module



⇒ Click here for good price IC693ALG221



Brand/Manufacturer   GE/USA
Part Number

  IC693ALG221

Alternate Part Number   IC693ALG221
Description   MOTOR SERVO
Dimennsions

  3.6x13x13.5cm

Weight   0.35kg



Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)



Product Details

IC693ALG221 is an Analog Current Input Module with four input channels for the Series 90-30 Programmable Logic Controller. This controller’s channels are each capable of converting an analog input signal into a digital signal as needed for the application. Two input ranges are available with a default of 4 to 20 mA with scaled user data so 4 mA corresponds to a count of zero and 20 mA to 32000. Each 1000 count represents 0.5 mA. If a jumper is added to the I/O terminal board, the input range is adjusted to 0 to 20 mA with scaled user data scale corresponding to a count of 32000 with each 800 count equal to 0.5 mA. This module is equipped with two range jumpers: one for channels 1-2 and one for channels 3-4.



The IC693ALG221 input module allows conversion speed of one half milliseconds for each of the channels with an update rate of two milliseconds for any of the provided channels. Resolution speed on a converted signal is 12 bits over either chosen range. Percent AI user data registers in 16 bit 2’s complement format. If the current source is reversed into the input, the module will output a data word that parallels to the low end of the range.



Input protection for the IC693ALG221 is sufficient to work with reduced performance with up to 200 V in common mode settings. This module also allows electrical isolation of external noise. All field connections require a good grade twisted, shielded instrumentation cable connected to the COM or GND. An LED indicator monitors power supply operation. The main power source specific to the IC693ALG221 is +24 VDC supplied PLC power routed through an inverter for the module. IC693ALG221 uses power from the +5 VDC output to drive isolation circuitry.

IC693ALG221  GE  Analog Current Input Module 0
