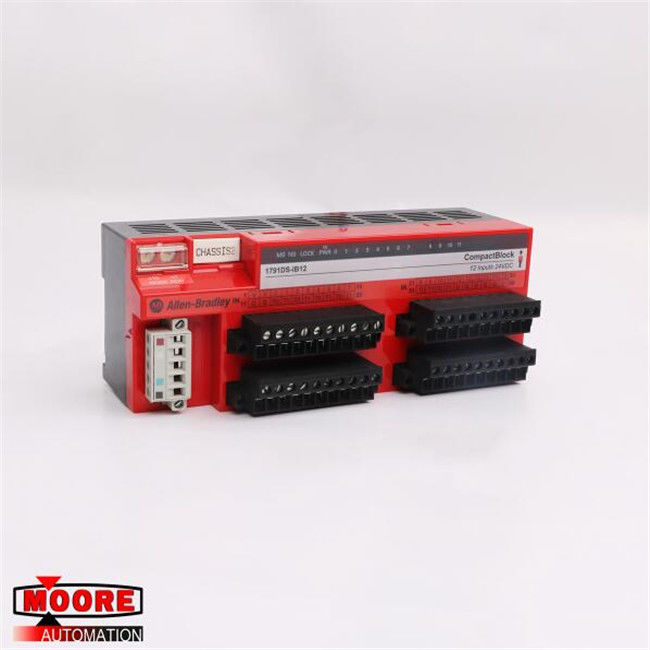

1791DS-IB12 1791DSIB12 AB AB Guard I/O 12 Point Digital Comb Module
⇒ Click here for good price 1791DS-IB12
| Brand/Manufacturer |
AB/USA |
| Part Number |
1791DS-IB12
|
| Alternate Part Number |
1791DS-IB12 |
| Description |
MOTOR SERVO |
| Dimennsions |
17x6.7x7.2cm
|
| Weight |
0.4kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1791DS-IB12 CompactBlock DeviceNet module is a safety I/O module that has 12 current sinking safety inputs, as well as 4 current sourcing test outputs. Its input current is 6 mA, with a maximum current of 1 mA when in the off-state. The voltage is a minimum of 11 Volts DC when in the on-state and a maximum of 5 Volts DC when in the off-state. The module’s output has a 1.2 Volts maximum residual voltage, a 0.7 A rated output current, and a 0.1 mA maximum leakage current. The 1791DS-IB12 module’s I/O power supply voltage ranges from 20.4 to 26.4 Volts DC, with a nominal voltage of 24 Volts DC, while its communications power supply voltage is 11 to 25 Volts DC, and its communications current consumption is 110 mA at 24 Volts DC.
Leave 1.96 inches of space above and below the 1791DS-IB12 so that it will have sufficient ventilation and wiring space. Do not remove the module’s shield until after wiring it. The 1791DS-IB12 can use Version 21 of the Studio 5000 Environment software and Version 2.51 of the RSLinx software.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
