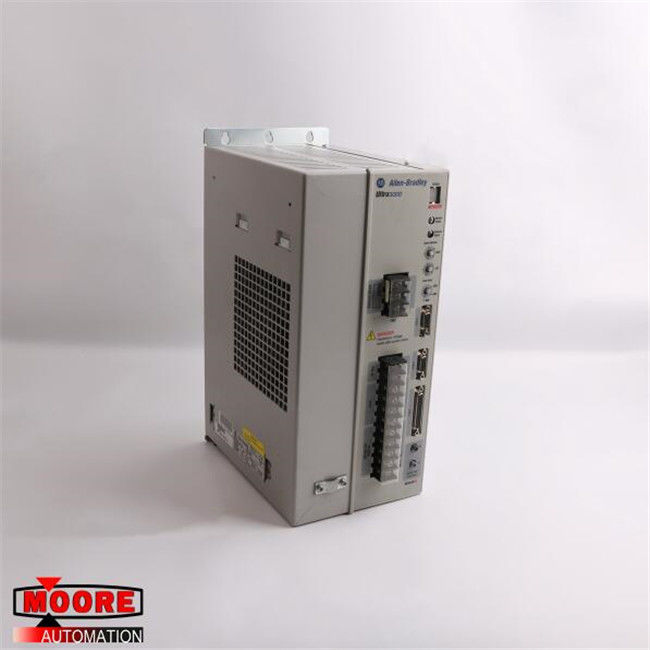

2098-DSD-HV150-SE AB AB Ultra 3000 15kW with SERCOS Servo Drive
⇒ Click here for good price 2098-DSD-HV150-SE
| Brand/Manufacturer |
AB/USA |
| Part Number |
2098-DSD-HV150-SE
|
| Alternate Part Number |
2098-DSD-HV150-SE |
| Description |
MOTOR SERVO |
| Dimennsions |
15.5x23x36cm
|
| Weight |
10.38kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 2098-DSD-HV150-SE is an Ultra3000-SE Positioning Drive designed for high voltage motion control applications and architecture. Its SERCOS interface provides Integrated Motion capability making it an efficient Kinetix Integrated Motion solution. It uses a fiber-optic SERCOS ring for its command interface. It is part of the family of high-performance and flexible Bulletin 2098 Ultra3000 Drive Systems that features a wide range of functions, power platforms, and connectivity options.
The 2098-DSD-HV150-SE Digital Servo Drive has a 400V class input voltage rated at 460V AC with 15 kW continuous output power and 24 A rms continuous output current. This 230-480V rms, 3-phase servo drive requires an external power supply rated between 12-24V for sufficient support and proper operation of the digital I/Os. It has an AC input frequency between 47-63 Hz and a main AC input current of 20 A (rms) nominal and 6 A (rms) maximum inrush. It uses node addresses 01-99 and it comes with communication rates of 4 and 8 Mbps.
If used for UL applications, the 2098-DSD-HV150-SE will need a class J LPJ-30SP and class CC KTK-R-30 Bussmann Fuses; including a Motor Protection Circuit Breaker, Self-protected CMC with category number 140M-F8E-C45. When used for IEC applications, only the given circuit breaker is required.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
