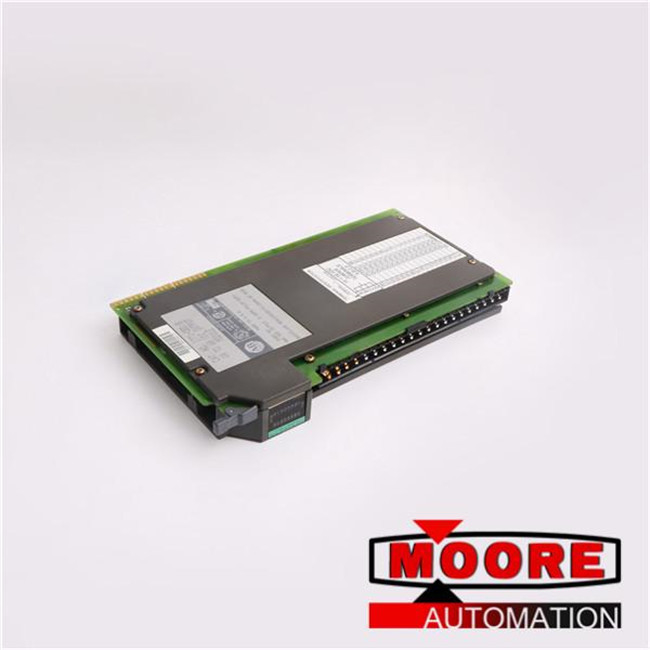

1771-OBD Allen Bradley 16 Point Digital Output Module
Product Quick Facts
◆ The AB 1771-OBD is an output module from the 1771
product bulletin. It has Sixteen (16) non-isolated output channels
that provides 10-60VDC output voltage range with nominal value
of 48VDC.
◆ Each output has a current rating of 2 A per output resistive, not to
exceed 8 A per module 0.2 A per output pilot duty.
| Number of Outputs |
16 Outputs |
| Voltage Category |
10 to 60 Volts DC, Source |
| DC Operating Voltage |
10 to 60 Volts |
| Backplane Current |
400 Miliamps |
| Max Continuous Current Per Output |
2 Amps |
| Max Continuous Current Per Module |
8 Amps |
| Wiring Arm |
1771-WH or 1771-WHF |
| Coating |
Conformal Coat |
| Data Format |
BDC or Natural Binary |
| Typical AC Signal Delay (Off) |
45 (+/- 15) milliseconds |
| Typical DC Signal Delay (Off) |
50 milliseconds |
| Wiring Arm |
1771-WH |
Product Advantages
※ Quality Advantage
We carry out intensive pre-delivery inspection & quality assurance
procedure.
※ Stock Advantage
Huge stock quantity for fast delivery realised via access to a host of
associated trusted stockists
※ Service Advantage
Experienced & well-trained service & customer-oriented team members
※ Worldwide Network Advantage
Our Global Distribution Network of vendors & associates expedites
delivery and consolidates stocks and resources management.
Company Strength
MOORE Automation Company has more than 10 years of experiences in
supplying industrial PLC & DCS items.
We're dedicated to delivering your purchase as quickly and affordably as
possible.We offer a range of delivery, so you can choose the shipping
method that best meets your needs.
We offer 12 month warranty after receiving parcels. If there are some
workmanship or material defects with the products, please contact us
firstly, we will exchange it or offer other solutions for you to make a choice.
