| Place of Origin | USA |
| Brand Name | BECKHOFF |
| Certification | CO.CQ |
| Model Number | CX1020-0000 |

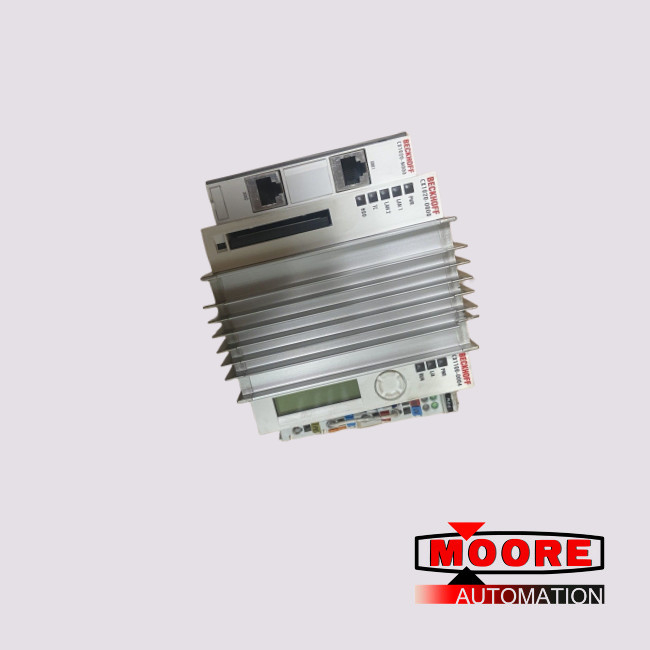

CX1020-0000 BECKHOFF Basic CPU module
Product Information
Processor Intel Celeron M ULV, 1 GHz clock frequency
Number of cores 1 Flash memory slot for Compact Flash card,
128 MB included (expandable)Main memory 256 MB DDR
RAM (expandable ex factory to 1 GB)Interfaces 2 x RJ45 10/
100 Mbit/s (internal switch)Diagnostics LED 1 x power, 2 x
LAN link/activity, TC status, 1 x flash access Expansion slot
1 x Compact Flash type I+II insert with eject mechanism Clock
internal battery-backed clock for time and date (battery exchangeable)
Operating system Windows Embedded CE 6, Windows Embedded
Standard 2009 Control software TwinCAT 2 PLC runtime, NC PTP
runtime, NC I runtime System bus 16 bit ISA (PC/104) I/O connection
via power supply module (E-bus, K-bus, K-bus/IP-Link) Power supply
via system bus (through CX1100-xxxx power supply modules)Max. power
consumption 11 W Dimensions (W x H x D) 96 mm x 112 mm x 99 mm
Weight approx. 550 g Relative humidity 95%, no condensation Operating/
storage temperature 0…+50°C/-25…+85°C EMC immunity/emission conforms
to EN 61000-6-2/EN 61000-6-4 Vibration/shock resistance conforms to EN
60068-2-6/EN 60068-2-27 Protection rating IP20 Approvals/markings CE, UL
