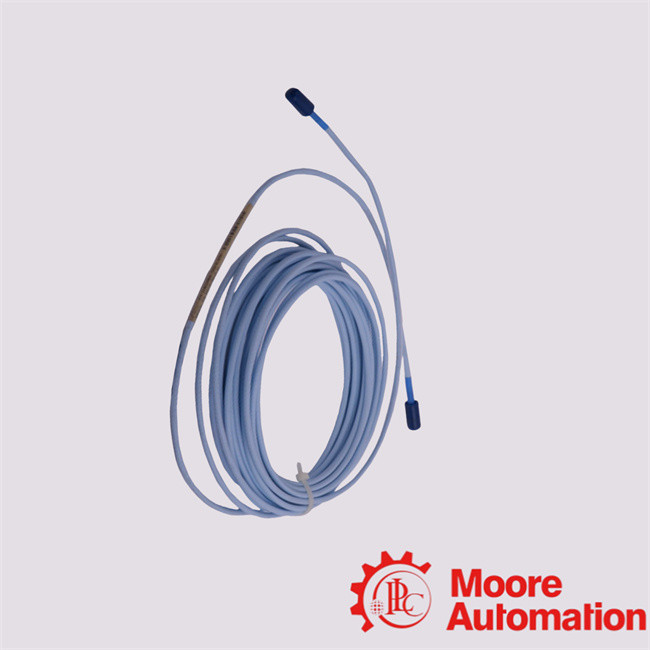

330907-05-30-05-02-00 Bently Nevada 3300 NSv Reverse Mount Probe
Specification
| Field Wiring Cable 132501-AXX |
1.0 mm2 (18 AWG), 3-conductor, twisted, shielded cable for connections between Proximitor® Sensor and monitor. Terminal ring lugs are installed at each end including an extra shield ring lug at the monitor end. |
| Probe Temperature Range |
-51°C to +177°C (-60°F to +351°F) for 3300 XL probes; -35°C to +177° (-31°F to +351°F) for non-XL probes |
| Extension Cable Temperature Range: |
-51°C to +177°C (-60°F to +351°F) |
| Operating Temperature: |
-51°C to +100°C (-60°F to +212°F) |
| Storage Temperature: |
-51°C to +100°C (-60°F to +212°F) |
| Relative Humidity: |
100% condensing, non-submersible when connectors are protected. |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the
observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s
primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor
reference and speed measurements3. The 3300 XL 8 mm system delivers the most advanced performance in our eddy
current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American
Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability
of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series
5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for
applications in which an 8 mm probe is too large for the available mounting space6,7
