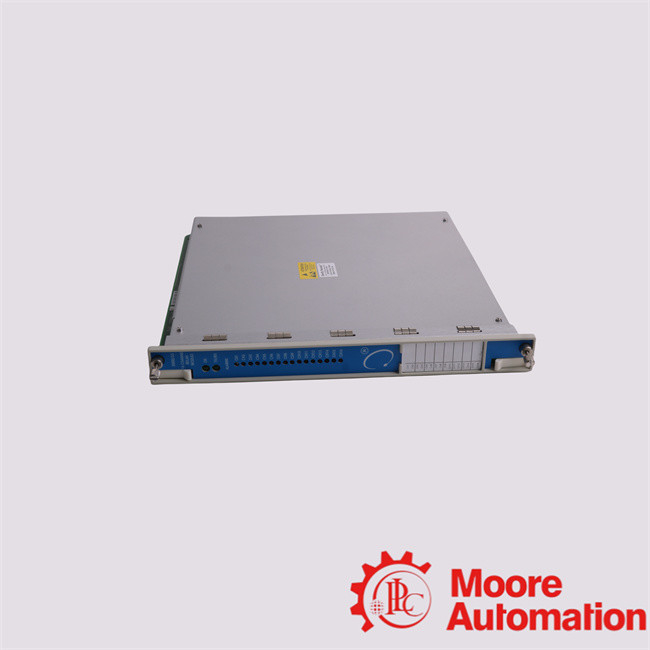

3500/33 149986-01 Bently Nevada 16-Channel Relay Module
Description
- Power Consumption :5.8 watts typical
- Relay Type :Single-pole Double-throw (SPDT)
- Relay Arc Suppressor :250 Vrms Installed as standard
- Relay Contact Life :10,000 cycles
- Dimensions (height x width x depth) :241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in)
- Weight :0.7 kg (1.6 lb)
Frequently Asked Questions About 3500/33 149986-01
1.What is the main function of the 3500/33 16-Channel Relay Module?
The 3500/33 16-Channel Relay Module provides multiple alarm and
control functions, receiving signals from monitoring systems to trigge
r relay actions for equipment protection, warnings, and control.
2.How many relay outputs does the module support?
The 3500/33 module supports up to 16 independent relay outputs, with each relay
configurable as Normally Open (NO) or Normally Closed (NC) contacts.
3.How is the 3500/33 module integrated into the 3500 system?
The 3500/33 module communicates with other 3500 series monitoring and control modules
via the data bus, receiving alarm signals and executing predefined control actions.
