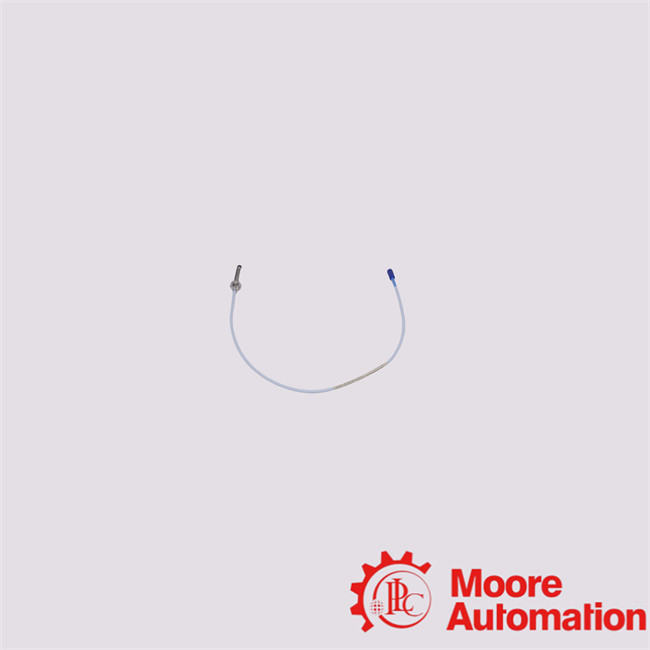

330103-00-10-05-02-00 Bently Nevada Proximity Probes
Description
The Bently Nevada 330103-00-10-05-02-00 proximity probe is a precision sensor designed for measuring the displacement and vibration of rotating machinery
components. This probe is integral to condition monitoring systems, offering accurate, real-time data for detecting mechanical imbalances, misalignments, and wear.
Typically used in critical applications such as turbines, compressors, and motors, the 330103-00-10-05-02-00 probe helps to ensure optimal machine performance by
providing early warnings of potential faults. Its durable construction and high reliability make it suitable for use in demanding industrial environments where
maintaining machine health is essential for operational efficiency. This proximity probe is fully compatible with Bently Nevada's vibration monitoring systems and
can be integrated with other condition monitoring equipment for comprehensive machine diagnostics.
330103-00-10-05-02-00 Details
| Recommended Gap Setting: 1.27 mm (50 mils). |
Deviation from best fit straight line (DSL): Less than ±38 µm (±1.5 mil) typical deviation from best fit straight line. |
| Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical |
Frequency Response: 0 to 6.5 kHz: +0, -3 dB, with up to 305 metres (1000 feet) of field wiring. |
| Linear Range: 2 mm (80 mils). Linear range begins at approximately 0.25 mm (10 mils) from target and is from 0.25 to 2.3 mm (10 to 90 mils). |
Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target). |
| Incremental Scale Factor: 7.87 mV/µm (200 mV/mil) ±6.5% typical, including interchangeability error when measured in increments of 0.25 mm (10 mils) over the linear range. |
Extension Cable: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated. |
| FAQ |
Q1: What is the Bently Nevada 330103-00-10-05-02-00 proximity probe used for?
The Bently Nevada 330103-00-10-05-02-00 proximity probe is used to measure the displacement and vibration of rotating machinery components. It provides critical data for monitoring the health of machines such as turbines, compressors, and pumps, helping to detect early signs of mechanical issues like misalignment, imbalance, or wear.
|
|
Q2:What types of machinery is the Bently Nevada 330103-00-10-05-02-00 probe suitable for?
This proximity probe is designed for use with critical rotating machinery, including turbines, compressors, electric motors, and pumps. It is ideal for industries like power generation, manufacturing, and oil and gas where machinery condition monitoring is vital.
|
|
Q3:How does the Bently Nevada 330103-00-10-05-02-00 proximity probe work?
The probe works by detecting the relative position between its probe tip and a target surface. It measures the displacement of machinery components, which helps identify early signs of faults like vibration, misalignment, or wear.
|
Inquiry now: miya@mvme.cn
