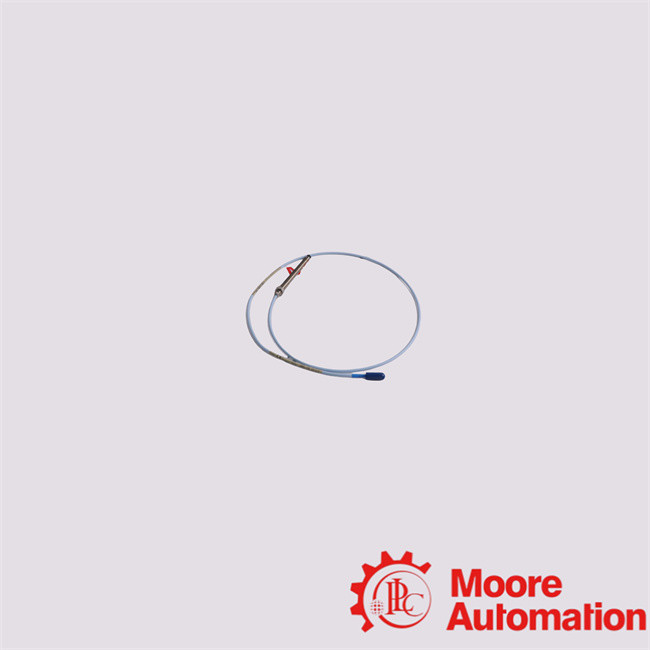

330101-00-76-10-02-05 Bently Nevada Proximity Probes
Description
The Bently Nevada 330101-00-76-10-02-05 proximity probe is a high-precision sensor designed for monitoring the position, vibration, and condition of rotating machinery in
industrial settings. This sensor is typically used to measure the radial displacement and vibration of rotating shafts, enabling early detection of mechanical issues such as
misalignment, imbalance, and wear. The probe works by detecting the gap between the probe tip and a metallic target, providing real-time data for predictive maintenance
and condition monitoring systems. It is suitable for use in industries such as power generation, oil and gas, and manufacturing, where accurate monitoring of critical machinery is
essential for preventing unexpected downtime and reducing the risk of equipment failure. With its robust construction, the 330101-00-76-10-02-05 probe can endure harsh industrial
environments and deliver reliable performance over a long period. It integrates seamlessly with Bently Nevada's
vibration monitoring systems, allowing for a comprehensive monitoring solution for rotating machinery.
330101-00-76-10-02-05 Details
| Recommended Gap Setting: 1.27 mm (50 mils). |
Deviation from best fit straight line (DSL): Less than ±38 µm (±1.5 mil) typical deviation from best fit straight line. |
| Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical |
Frequency Response: 0 to 6.5 kHz: +0, -3 dB, with up to 305 metres (1000 feet) of field wiring. |
| Linear Range: 2 mm (80 mils). Linear range begins at approximately 0.25 mm (10 mils) from target and is from 0.25 to 2.3 mm (10 to 90 mils). |
Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target). |
| Incremental Scale Factor: 7.87 mV/µm (200 mV/mil) ±6.5% typical, including interchangeability error when measured in increments of 0.25 mm (10 mils) over the linear range. |
Extension Cable: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated. |
| FAQ |
Q1: What is the purpose of the Bently Nevada 330101-00-76-10-02-05 proximity probe?
The Bently Nevada 330101-00-76-10-02-05 proximity probe is used to measure the displacement and vibration of rotating machinery. It helps detect mechanical issues like misalignment, imbalance, and wear by providing real-time data on the radial displacement and vibration of rotating shafts, which is essential for predictive maintenance and condition monitoring.
|
|
Q2:In which industries is the 330101-00-76-10-02-05 proximity probe commonly used?
This proximity probe is commonly used in industries such as power generation, oil and gas, and manufacturing, where continuous monitoring of rotating machinery is critical for ensuring operational efficiency and preventing downtime.
|
|
Q3:How does the Bently Nevada 330101-00-76-10-02-05 proximity probe function?
The probe detects the distance between the probe tip and a metallic target on the rotating shaft. It converts this distance into an electrical signal that provides real-time data on the displacement and vibration of the machinery. This data can be used to detect early signs of mechanical failure, ensuring timely maintenance.
|
