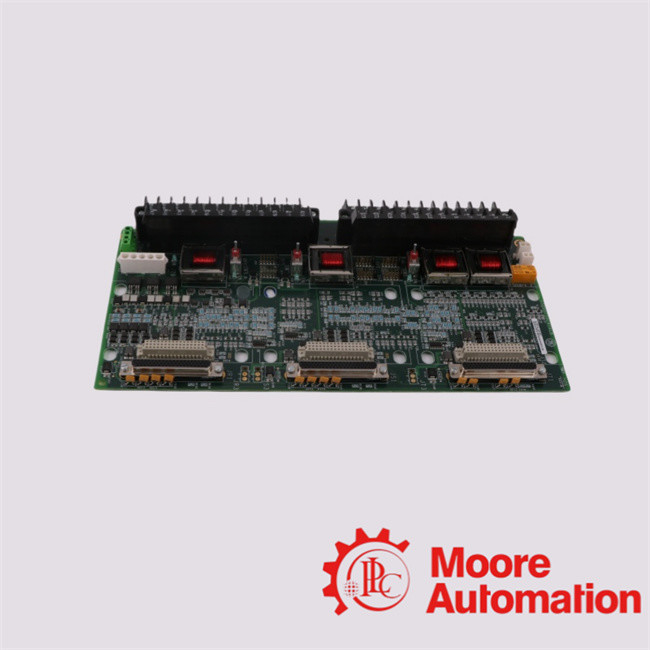

IS200TSVOH1B GE Servo Terminal Board

Name: IS200TSVOH1B GE Servo Terminal Board
Brand: MOORE AUTOMATION LIMITED
SKU: IS200TSVOH1B
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	General Electric
Certification:	CO.CQ
Model Number:	IS200TSVOH1B

Detail Information

Place of Origin:

USA

Brand Name:

General Electric

Certification:

CO.CQ

Model Number:

IS200TSVOH1B

Description:

Servo Terminal Board

Part Number:

IS200TSVOH1B

Manufacture Year:

2022

Brand:

Fanuc

Application:

Nuclear Power Plant

Lead Time:

In Stock

Weight:

4lbs

Trading Information

Minimum Order Quantity:

Price:

inquiry

Packaging Details:

new and original with factory sealed

Delivery Time:

today

Payment Terms:

T/T

Supply Ability:

10 pieces a day

Product Description

IS200TSVOH1B GE Servo Terminal Board

Overview
The IS200TSVOH1B is a Servo Terminal Board developed by General Electric (GE) as part of the Mark VI turbine control system. It plays a critical role in interfacing electro-hydraulic servo valves with the control system, ensuring precise regulation of steam and fuel valves in industrial applications.
Product Feature
Valve Control and Feedback:	Redundancy and Safety:	Installation and Wiring:
Interfaces with two electro-hydraulic servo valves to manage steam/fuel flow. It utilizes Linear Variable Differential Transformers (LVDTs) to measure valve positions accurately, supporting up to six LVDT inputs per board.	Supports both Simplex and Triple Modular Redundancy (TMR) configurations. Simplex signals are routed through the JR1 connector, while TMR signals are distributed via JR1, JS1, and JT1 connectors, enhancing system reliability.	Equipped with two I/O terminal blocks, each with 24 terminals accommodating up to #12 AWG wiring. Shield termination strips adjacent to each block connect to chassis ground, ensuring signal integrity.
