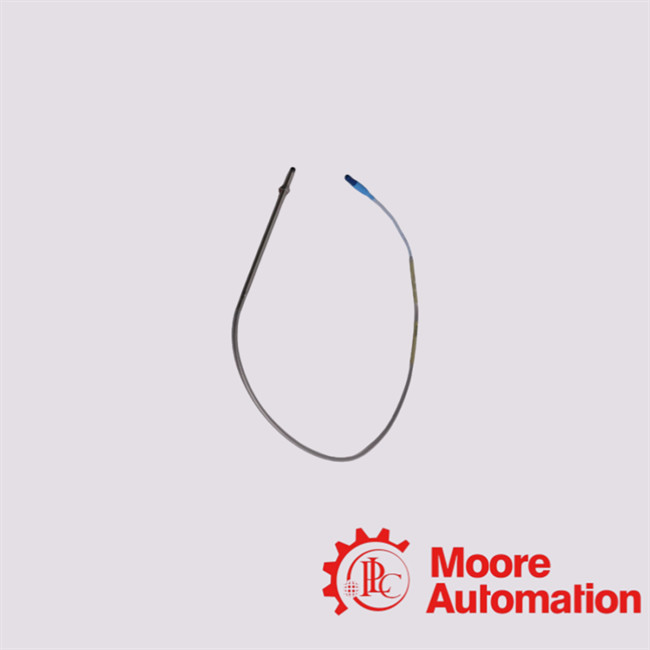

330102-00-12-05-02-05 Bently Nevada Proximity Probes
Description
This probe features a 3/8-24 UNF thread with an armored cable, enhancing durability in industrial environments.
It utilizes eddy current technology to provide output voltage proportional to the distance between the probe tip and a conductive surface,
enabling accurate monitoring of both static (position) and dynamic (vibration) parameters. The system complies with API 670 standards, ensuring high performance and reliability.
330102-00-12-05-02-05 Details
|
FAQ
|
|
Q1: Is this probe compatible with other Bently Nevada systems?
Yes, the 3300 XL 8 mm probes are designed for full interchangeability with other 3300 XL series components, including extension cables and Proximitor sensors, without the need for individual component matching or bench calibration.
|
|
Q2: What are the primary applications of this probe?
The probe is primarily used for:
Vibration and position measurements on fluid-film bearing machines.
Keyphasor reference and speed measurements.
|
|
Q3: What is the operating voltage requirement?
The system requires a power supply of -17.5 Vdc to -26 Vdc without barriers, and -23 Vdc to -26 Vdc with barriers, with a maximum consumption of 12 mA. Operating at a more positive voltage than -23.5 Vdc can result in reduced linear range.
|
|
Q4: What is the protection rating of the probe?
The probe has an IP67 rating, indicating it is dust-tight and protected against temporary immersion in water, making it suitable for harsh industrial environments.
|
