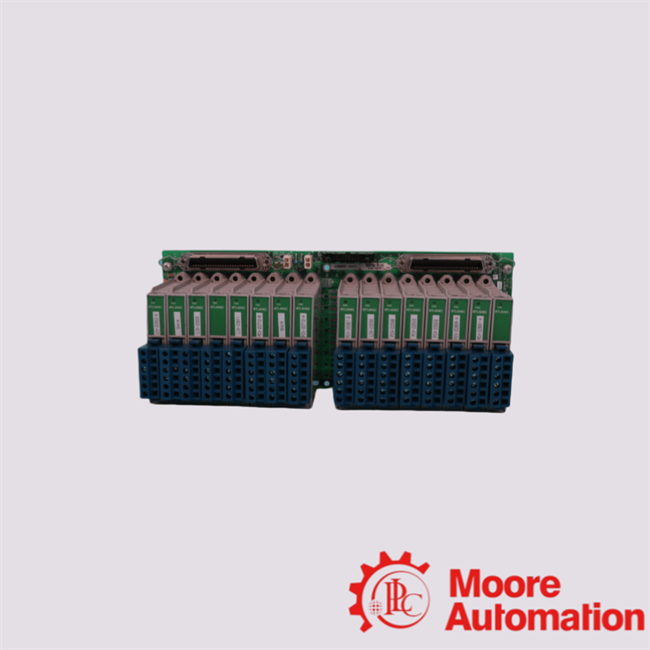

MC-GHAO11 51309540-175 HONEYWELL Analog Output Module
| Product Description |
|
The MC-GHAO11 51309540-175 module is a 16-channel analog output field termination assembly (FTA) designed for industrial DCS/PLC systems.
It supports galvanically isolated 4–20 mA analog outputs with HART compatibility—making it suitable for actuators,
I/P transducers, positioners, valves, and similar devices. Each channel can drive loads up to 870 Ω.
|
| More Technical Data |
| Isolation |
Galvanic isolation per channel |
| Load Drive Capability |
Up to 870 Ω per channel |
| Adjustable Output Range |
Direct setting from ~2.9 mA to ~21.1 mA |
| Output Ripple |
~100 mV peak-to-peak at power‑line frequency |
| HART Support |
Built-in filters + dedicated HART multiplexer port |
| Frequently Asked Questions |
|
Q1: How many output channels does this module support?
A: It provides 16 independent channels, each outputting a 4–20 mA signal.
Q2: Is HART‑protocol compatible?
A: Yes. The module includes HART signal filters and a connector to
support external HART multiplexers for field device communications.
Q3: What is the maximum load per channel?
A: Each channel can drive up to approximately 870 Ω resistive loads.
Q4: What's the accuracy, ripple, and adjustment range?
A: Accuracy is around ±4% for readback, with ±0.05% linearity and resolution.
Output ripple is typically ~100 mV p‑p, and the direct settable current range is roughly 2.9 mA to 21.1 mA, including 0 mA.
|
