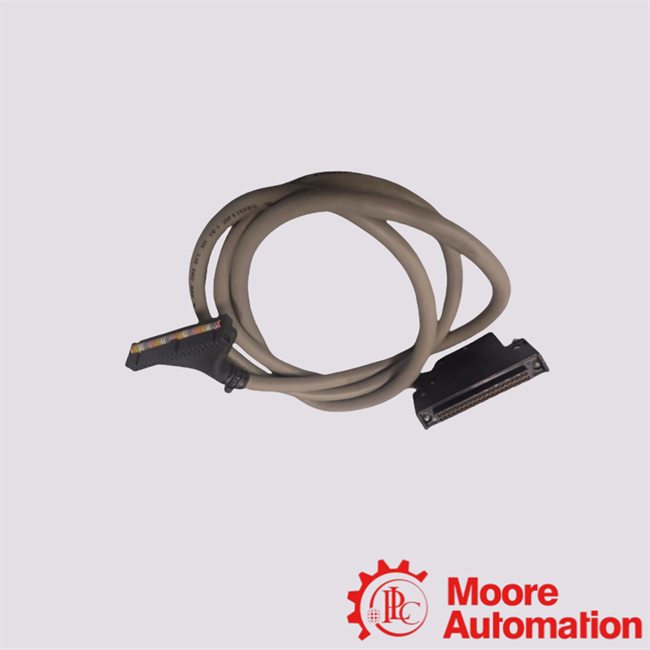

C40HF-15PB-1 HONEYWELL Cable for Relay Output Block
| Product Description |
|
The Honeywell C40HF-15PB-1 is a connector cable assembly designed to interface terminal or relay output boards in PLC and modular controller systems.
Specifically:It features a 40-pin (female) connector on each end, enabling direct linkage between modules such as terminal boards or relay output
blocks and the main PLC system .The standard length is approximately 1.5 meters (about 4.5 ft) Typically configured
as a 40p–40p cable assembly suitable for Smart Link or terminal board connections.
|
| More Technical Data |
| Connector |
40-pin female to 40-pin female |
| Length |
1.5 m (standard), 3.0 m (alternate) |
| Voltage Rating |
~30 V for I/O signal lines |
| Wire Spec |
20-pin × 28 AWG |
| Weight & Diameter |
~0.14 kg; 8.2 mm OD |
| Frequently Asked Questions |
|
Q: What exactly does the C40HF-15PB-1 cable connect?
A: It connects the PLC’s I/O system (such as terminal or relay output boards)
using a 40-pin interface—facilitating reliable signal transfer between modules.
Q: Are there other length options?
A: Yes. The 1.5 m version is standard (C40HF-15PB-1),
and a 3.0 m version is available as C40HF-30PB-1
Q: Is this cable still manufactured?
A: Some sources indicate it's discontinued by the manufacturer,
although stocked by distributors like Radwell (which offers a 2-year warranty)
Q: What kind of voltage and wiring does it use?
A: It supports low-voltage signals (~30 V), using 20 pin x 28 AWG wiring,
typically suitable for I/O signal transmission, not power delivery
Q: What are its environmental and handling specs?
A: Operating temperature: –40 °C to +80 °C; storage: –50 °C to +85 °C.
The 8.2 mm cable diameter allows a bend radius of 50 mm (fixed) and 100 mm (flexing).
It withstands up to 100 N tensile load and weighs ~0.14 k
|
