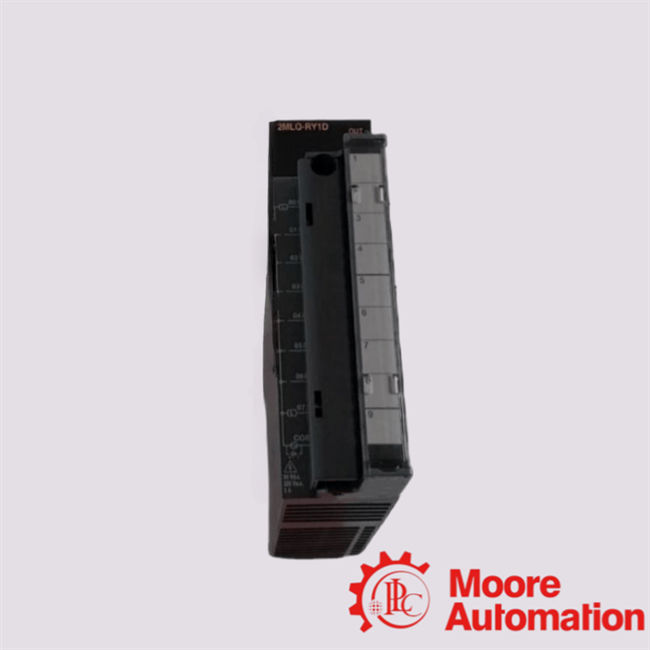

2MLQ-RY1D-CC HONEYWELL Digital Output Module
| Product Description |
|
The 2MLQ-RY1D-CC is a relay output module in Honeywell’s MasterLogic-200 / ML200R programmable logic controller (PLC) family.
It provides discrete (on-off) switching capabilities via relays, with diagnostic features for output failure detection.
It is often used to drive or switch industrial loads (relays, solenoids, contactors, etc.)
in automation, machine control, or process control systems.
|
| More Technical Data |
| Number of output channels |
8 points / 8 relay outputs |
| Output current rating per point |
2 A (under specified voltage) per channel |
| Isolation |
Relay outputs give galvanic isolation of load side from logic side |
| Diagnostic / Fail detection |
Yes — wire break detection and detection of output circuit errors |
| Frequently Asked Questions |
|
What is the “CC” suffix in 2MLQ-RY1D-CC?
The “CC” likely stands for Conformal Coated, meaning the module has a conformal coating for environmental
protection (moisture, dust, etc.). This increases reliability in harsh environments.
Q: Is this module suitable for high inductive loads (motors, coils, etc.)?
A: Relay outputs can switch inductive loads, but such loads will reduce the relay lifetime, generate surge voltages, etc.
You might need external suppression (snubbers, varistors) depending on the load. The datasheet for comparable
modules indicates surge absorbers are not included in some RY variants.
Q: What is the switching speed / response time?
A: Relay outputs are relatively slow compared to electronic (transistor / triac) outputs. For similar RY (relay) modules,
typical response times (OFF→ON, ON→OFF) are on the order of tens of milliseconds (e.g. ~10-12 ms) for
certain load conditions. But I didn’t see exact numbers confirmed for the 2MLQ-RY1D-CC.
.
|
