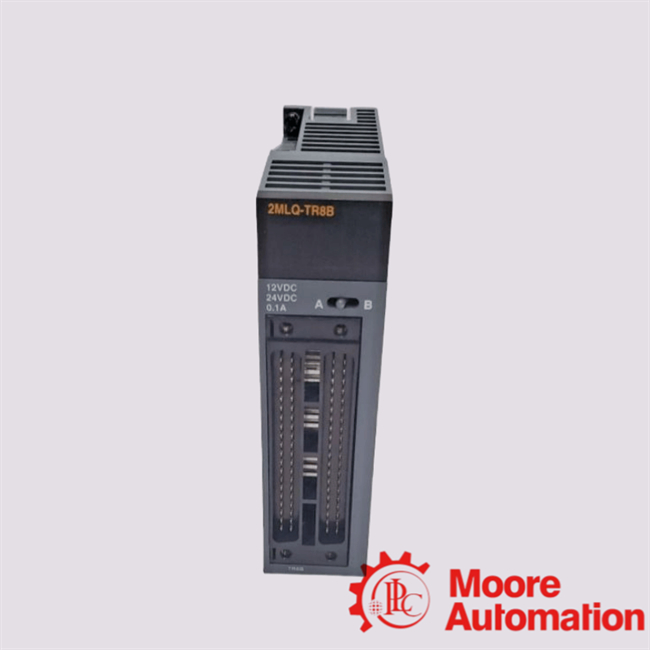

2MLQ-TR8B-CC HONEYWELL Digital Output Module
| Product Description |
|
The 2MLQ-TR8B-CC is part of Honeywell’s MasterLogic-200 family of I/O modules. It's a digital output (DO) module with transistor (solid-state) outputs.
The “TR8B” indicates 64 output points, with source-type transistor outputs. The trigger/logical control is through the
MasterLogic PLC system. The “CC” may refer to a particular housing or revision code.
|
| More Technical Data |
| Module type |
Digital Output Module, Transistor output, Source type |
| Number of output points |
64 points |
| Rated load voltage |
DC 12 V / 24 V |
| Operating load voltage range |
Approx. 10.2 V to 26.4 V |
| Frequently Asked Questions |
|
Q1. What does “Source type” output mean?
A: “Source type” means that when an output is turned ON, current is sourced from the module to the load. In practice, the load is connected
between output point and supply return (or common), so the module provides the positive side (or sourcing) of current. This
is in contrast to “sink type” where module sinks current (i.e. provides the ground side).
Q2. Can all 64 outputs be ON simultaneously?
A: Yes, but the total current drawn will be limited by the current capacity of the common lines (COM) and wiring. The module current
consumption (for the module electronics) plus load currents must not exceed the COM rating
(2 A per COM) and must respect wiring size, voltage drop, etc.
Q3. What happens if a COM is overloaded?
A: The module likely has internal protection/limiting (such as design for inrush, voltage drop limits). But if overloaded beyond its rating
(e.g. too much current or short circuit), performance could degrade, or it may fail. It’s good practice to ensure
wiring & loads are sized properly, possibly add external protection (fuses) if needed.
Q4. What is the reaction speed?
A: The module’s output switching times are fast: on or off transitions are in the order of ≤ 1 ms (for rated resistive loads).
|
