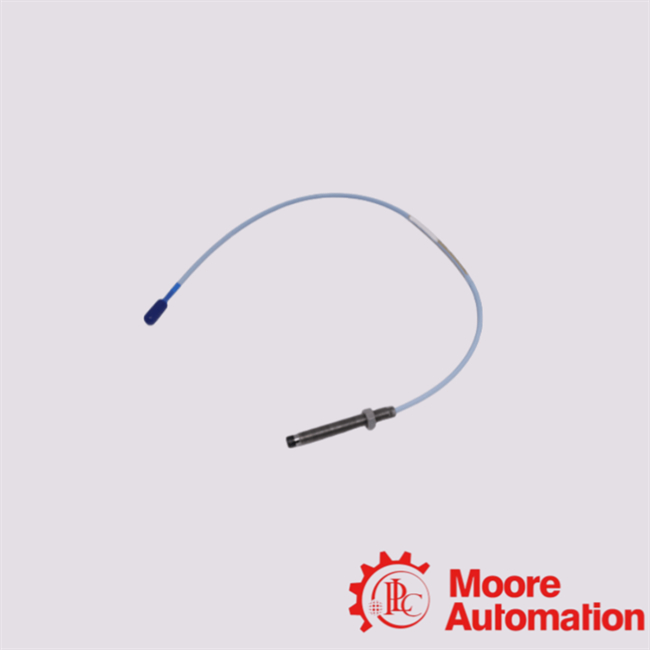

330101-00-09-15-12-CN Bently Nevada Proximity Probes
Description
The Bently Nevada 330101-00-09-15-12-CN is a component of the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and
displacement monitoring in industrial machinery. This system is widely used for applications such as vibration monitoring,
position measurement, and Keyphasor® speed sensing, particularly in fluid-film bearing machines.
330101-00-09-15-12-CN Details
|
FAQ
|
|
Q1: What is the measurement range of the 3300 XL 8 mm system?
The system provides a linear measurement sensing range of 4 mm (160 mil) and
outputs 3.94 V/mm (100 mV/mil), suitable for vibration and displacement measurements.
Q2: Is the 330101-00-09-15-12-CN probe compatible with other 3300 XL components?
Yes, all 3300 XL 8 mm proximity transducer systems support complete interchangeability of probes,
extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Q3: What approvals does the "CN" suffix indicate?
The "CN" suffix signifies that the product has country-specific approvals, which may include compliance
with local standards and regulations. For detailed information, refer to the Bently
Nevada CN Approvals Option Quick Reference Guide.
Q4: Can the probe withstand high-pressure environments?
The 3300 XL 8 mm probes incorporate a Viton O-ring to effectively seal differential pressure between the probe tip
and case. However, probes are not pre-tested for pressure sealing during manufacturing. Customers can
request customized testing for applications requiring verified pressure seals.
|
|
|
|
