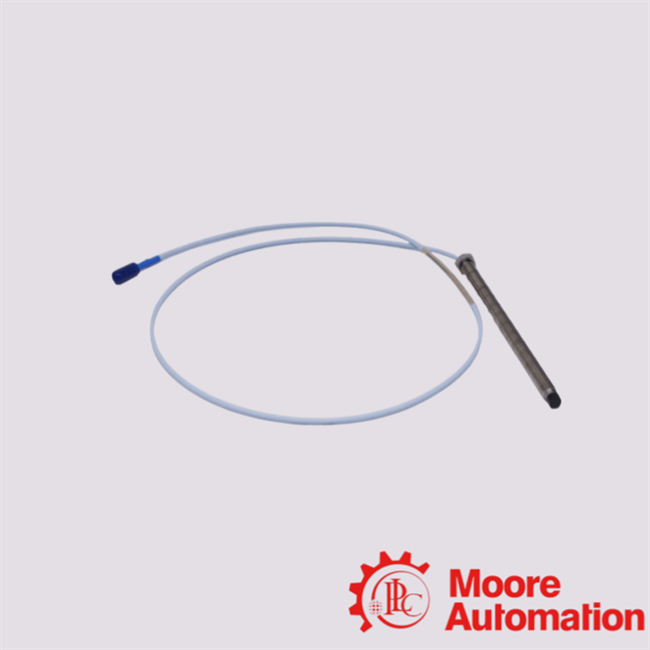

330101-00-66-20-02-05 Bently Nevada Proximity Probe
Description
The Bently Nevada 330101-00-66-20-02-05 is a proximity probe from the 3300 XL 8 mm Proximity Transducer System, which utilizes eddy current technology to measure the displacement of
rotating machinery components. This system is renowned for its high accuracy, reliability, and full interchangeability of components, eliminating the need for bench calibration.
It complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
330101-00-66-20-02-05 Details
|
FAQ
|
|
Q: What is the 330101-00-66-20-02-05 proximity probe?
It is a component of the 3300 XL 8 mm Proximity Transducer System, designed for non-contact displacement and vibration
measurement in rotating machinery.
|
|
Q: What materials are used in the probe?
The probe tip is typically made of Polyphenylene Sulfide (PPS), and the probe case is constructed from AISI 303 or
304 stainless steel.
|
|
Q: What is the operating principle of the probe?
The probe operates on the principle of eddy current sensing, where the proximity of a conductive target alters the inductance of
the probe, providing a voltage signal proportional to the displacement.
|
|
Q: Is this probe interchangeable with other probes?
Yes, the 3300 XL system supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating
the need to match or bench calibrate individual components.
|
