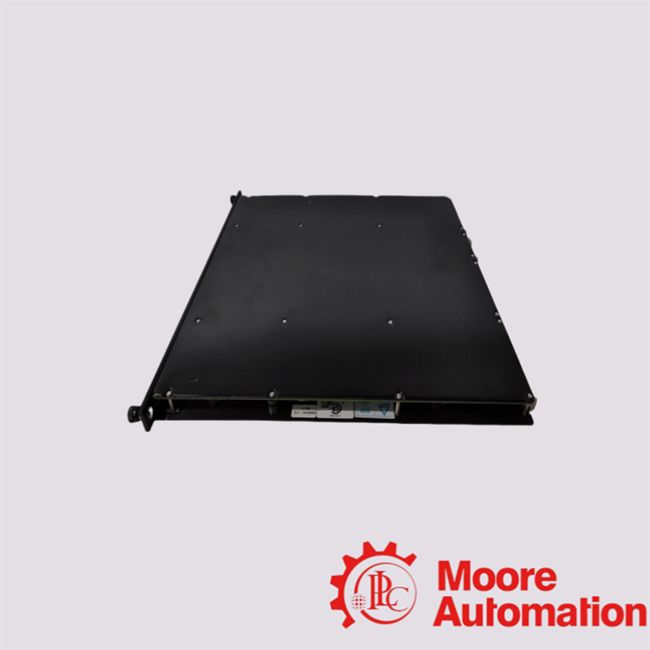

4409 SMM TRICONEX Safety Manager Module
| Product Description |
|
The Model 4409 Safety Manager Module (SMM) functions as an interface between a Tricon safety controller (part of a Triconex SIS) and the Honeywell
Universal Control Network (UCN), which is a principal network used in Honeywell’s TDC-3000 Distributed Control Systems.
|
| More Technical Data |
| Model number |
4409 Safety Manager Module (SMM) |
| Host interface |
Tricon safety controller (Triconex SIS) |
| External network interface |
Honeywell Universal Control Network (UCN) |
| UCN ports |
2 isolated (AC-coupled) redundant ports |
| Isolation |
500 VDC isolation on network ports |
| Frequently Asked Questions |
|
Q1: What are the performance capabilities of the UCN interface?
The SMM operates at the full data rate of the Universal Control Network, typically around
5 MBytes/sec over the dual isolated ports.
Q2: What version(s) of Tricon or Honeywell systems are supported?
The SMM is referenced in Tricon technical product guides for several versions (for example, Tricon version 9.4) and
is specifically designed to interface with the Honeywell Universal Control Network (UCN)
of TDC-3000 DCS environments.
Q3: What happens if the SMM fails or loses connection?
If an SMM fails or loses communications, the hot-spare capability allows a standby SMM to take over communication
functions with minimal or no interruption to the Honeywell network. Redundant UCN ports also
help mitigate single-point communication path failures.
Q4: Does the Honeywell system have write access to the Tricon controller?
The SMM supports write protection. This feature can lock out write or configuration changes to the Tricon
controller from any TDC-3000(Honeywell) sources, ensuring that safety logic remains
secure and under the exclusive control of the Tricon side.
|
