330101-02-21-10-01-00 Bently Nevada Proximity Probes
Description

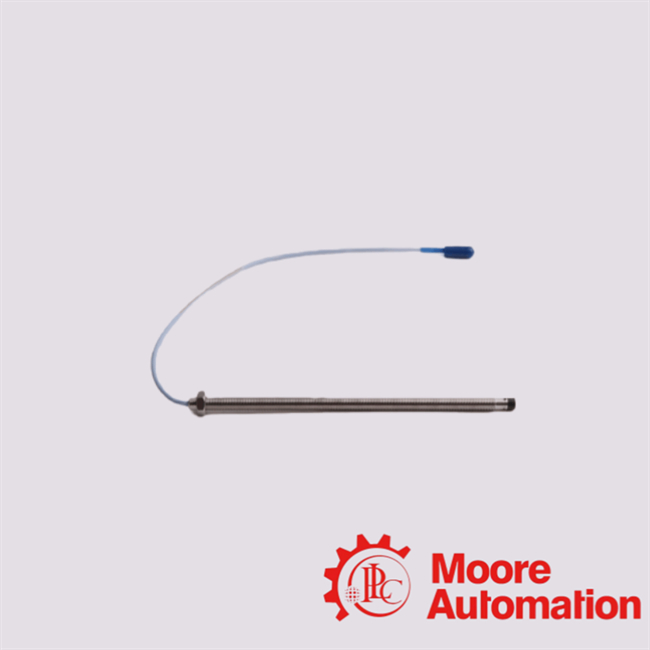

The Bently Nevada 3300 (or 3300 XL series) 8 mm Proximity Probe,Part Number: 330101-02-21-10-01-00 is designed to be part of Bently Nevada’s Eddy-Current
Proximity Transducer system (3300 / 3300 XL family). The complete transducer loop includes:The proximity probe
(this part)/An extension cable (if required)/The signal processing (Proximitor) module
When used together, the system detects both static gap (displacement)
and dynamic vibration of a rotating
shaft relative to a probe tip.
330101-02-21-10-01-00 Details
|
FAQ
|
|
Is this probe backward-compatible with older Bently 3300 probes?
A: Yes. The 3300 XL generation is designed to be electrically and mechanically interchangeable with legacy 3300 5 mm / 8 mm
probes and extension cables — so long as the system does not
exceed the weaker (non-XL) component’s limits.
|
|
What is the interchangeable / calibration philosophy?
A: Bently’s 3300 / XL system is designed so probes, extension cables, and Proximitor modules do not need individual
“pairing” or bench calibration — components are calibrated to a reference target
(AISI 4140 steel) and are generally interchangeable.
|
|
What is the expected linear measurement range and sensitivity?
A: For a standard 3300 XL 8 mm system, the linear range is ~2.0 mm, and the scale factor (ISF) is ~7.87
V/mm (200 mV/mil) over that range.
|
|
How far from the Proximitor (signal conditioner) can this probe be placed?
A: Standard systems support up to ~305 m (1,000 ft) of field wiring between the
Proximitor and the monitoring equipment.
|
