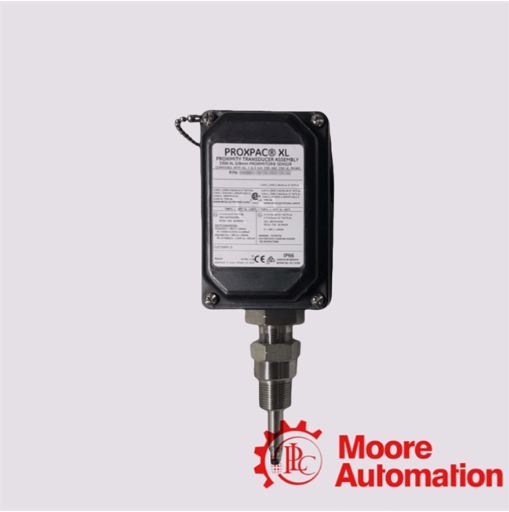

330881-16-00-060-01-02 Bently Nevada Proximity Transducer Assembly
Description
The transducer assembly from Bently Nevada is part of their PROXPAC XL (or “330881 …” series) proximity transducer assemblies. These are self-contained proximity probe systems designed
for shaft position/displacement (gap) and vibration monitoring on rotating machinery, especially where high reliability and industrial grade ruggedness are required.transducer assembly
from Bently Nevada is part of their PROXPAC XL (or “330881 …” series) proximity transducer assemblies. These are self-contained proximity
probe systems designed for shaft position/displacement (gap) and vibration monitoring on rotating machinery, especially
where high reliability and industrial grade ruggedness are required.
|
FAQ
|
|
Q1: What does the ordering code “330881-16-00-060-01-02” mean?
A1: The code is composed of several option fields. While the exact meaning for every number should be verified with Bently’s ordering reference, here’s a likely breakdown based on similar parts:
-
“330881” = PROXPAC XL Proximity Transducer Assembly family.
-
“-16” = Probe and approval option (e.g., 3300 XL 8 mm probe without approvals).
-
“-00” = Standoff adapter option (in this case ‘00’ meaning none or default).
-
“-060” = Probe penetration length (60 mm).
-
“-01” = Fittings option (kit of fittings supplied).
-
“-02” = Mounting thread option (¾-14 NPT).
Always consult the factory ordering guide to confirm the options for your exact code.
|
|
Q2: What are the main advantages of this assembly vs a separate probe + cable + sensor configuration?
A2:
-
Simplified installation: fewer interconnects, fewer components.
-
Rugged and sealed housing: integrated design reduces potential failure points (cable joints, connectors).
-
Designed for high-reliability industrial use (bearing houses, turbines etc).
-
The PROXPAC XL housing is designed for harsh environments (PPS material, IP66/Type 4X etc) according to the datasheet.
|
|
Q3: What specifications should I check when installing it?
A3: Key specs you should check and match:
-
Gap / linear range of the probe system (how far from target the probe tip should be, and what is the linear output region). The 3300 XL system typical linear range is ~2 mm (80 mils) for 5m or 1m systems.
-
Mounting thread / adapter / penetration length — ensuring the tip is correctly placed relative to the shaft/target.
-
Mounting surface rigidity and target material (eddy current probes assume conductive target, often steel).
-
Power / signal wiring compatibility, cable length and shielding (the system supports long wiring runs – the PROXPAC datasheet shows up to 305 m (1,000 ft) to monitor).
-
Environmental rating (temperature, vibration, seal, ingress protection).
-
Approvals/hazardous area certifications if your application demands it.
-
Matching the system with your monitoring electronics (target target material, calibration, etc).
|
