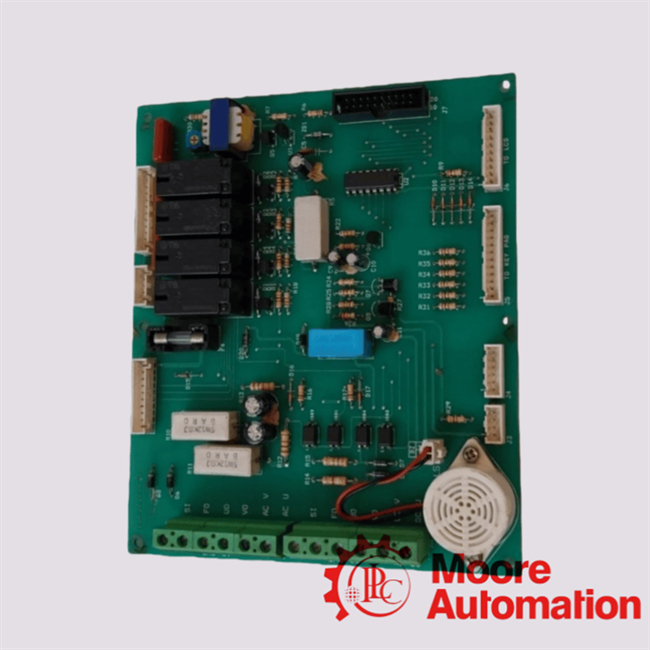

- HX-72 AUTO TELEPHONE EXCHANGER PCB CARD
Description
The HX-72 is an automatic telephone exchange system manufactured by Hanshin Electronics.The system is built around a microprocessor-based control (an IAPX8088 CPU) for switching
and system logic.In the system configuration are multiple cards/boards (PCB cards) such as: main processing card (A2MPUA), main auxiliary card (A2MAUA),
trunk card (A2TKUA), subscriber line card (A2SLUA), hybrid card (A2HYUA), terminal board (HX-720P-031), etc.The HX-72 system
specification shows: maximum internal subscriber lines up to 70, external
lines (trunks) standard 4 lines (with extension options).
Feature And Application of HX-72
| Feature |
Application |
|
Based on the system’s specification and what the PCB cards support, key features include:
-
Microprocessor (IAPX8088) control: Allows stored program control, flexible logic, diagnostics.
-
Space‐division matrix switching: The system supports switching via space-division matrix—not just time-division—giving it reliable switching architecture.
-
Pulse/Tone conversion: The system supports both pulse dialing and tone dialing, and can convert between them.
-
Automatic power changeover: The system can automatically switch between main power and emergency power sources (AC110/220 V, DC24 V) to maintain functionality.
-
Alarm / fault display: Cards/boards detect faults (off-hook lines, power, fuses, etc) and provide diagnostics (LCD display for off-hook, fault indicators).
|
-
Marine & shipboard telecommunication systems: The HX-72 is especially designed for vessels and marine environments (hence the rugged build). It is used for internal telephone exchanges, communications between cabins, engine room, bridge, etc.
-
Automatic telephone exchange in commercial buildings: Although specification mentions marine use, the underlying features (automated switching, trunk lines, extension lines) can be applied in any setting needing an internal PABX-type telephone switching.
-
Industrial environments with harsh conditions: Because the system can cope with vibration, moisture, corrosive environment and voltage fluctuations, it is suitable for industrial plants, offshore platforms, etc.
|
