3BHE024313R0101 KSD211A101 ABB Power module input coupling unit

What’s app/Mobile:86-18020776792     Skpye:miyazheng520

Email:miya@mvme.cn (click)     Contact our manager : Miya

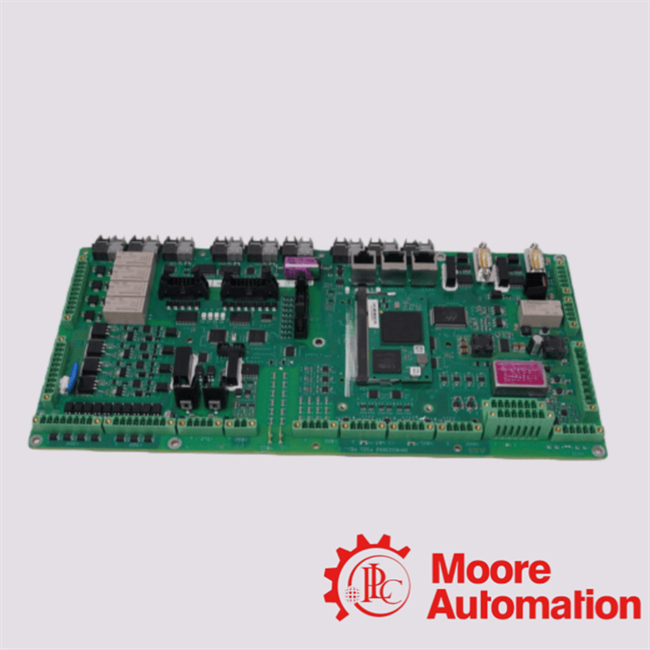

 The ABB 3BHE024313R0101 (KS D211 A101) is an Input Coupling Unit (ICU) manufactured by ABB. It belongs to the KS D211 module family (variant A101) and is intended for use in industrial

automation/excitation/control system racks. A few points:It is a card or module designed for insertion into a larger system (likely ABB’s UNITROL or equivalent

excitation system, or control rack environment) to receive and interface “input signals” (e.g., analog, digital or coupling signals) from field devices or another

subsystem.It is used in systems such as power plant excitation, generator control or other industrial power electronics/instrumentation subsystems.

E.g., references indicate it appears in UNITROL 6000 series exciters.the module acts as the interface (coupling) between

 some external input (sensor, field signal, device) and the main

 control/excitation system bus or logic.

Q1: What is the function of the 3BHE024313R0101 module?
A1: It acts as an Input Coupling Unit (ICU) — a module that receives input signals from field devices or sensors and couples them into the main control/excitation system bus or logic. It provides

the interface between external inputs and internal system processing.

Q2: Which system is this module used with?
A2: It is part of ABB’s KS D211 series (variant A101) and is referenced in environments such as UNITROL 6000 generator excitation systems and industrial

automation racks requiring input coupling. (See reference to UNITROL 6000

for the B‐variant KS D211 B101)

Q3: Can I still purchase this part?
A3: According to at least one vendor, this particular variant (KS D211 A101 / 3BHE024313R0101) is “Discontinued”.  However, there are

distributors listing stock of similar family modules. If used in a critical system,

consider verifying availability and compatibility.

Q4: What are the physical dimensions and weight?
A4: For the similar KS D211 B101 variant (3BHE022455R1101) the dimensions are approximately 120 mm (depth)

× 50 mm (width) × 165 mm (height), with net weight about 0.5 kg.

 The A101 variant is likely similar form factor.

Q5: What kinds of inputs can the module handle?
A5: The public documentation does not detail exact input signal types (voltage, current, digital). The “coupling unit”

 suggests it is designed to adapt field inputs (analog/digital) into the system. For exact input types,

refer to the ABB service manual for KS D211 series. Vendors mention

“Input Module” and “Input Coupling

Unit” as description.
