GJR2393800R0100  88QB03B-E ABB bus termination module

What’s app/Mobile:86-18020776792     Skpye:miyazheng520

Email:miya@mvme.cn (click)     Contact our manager : Miya

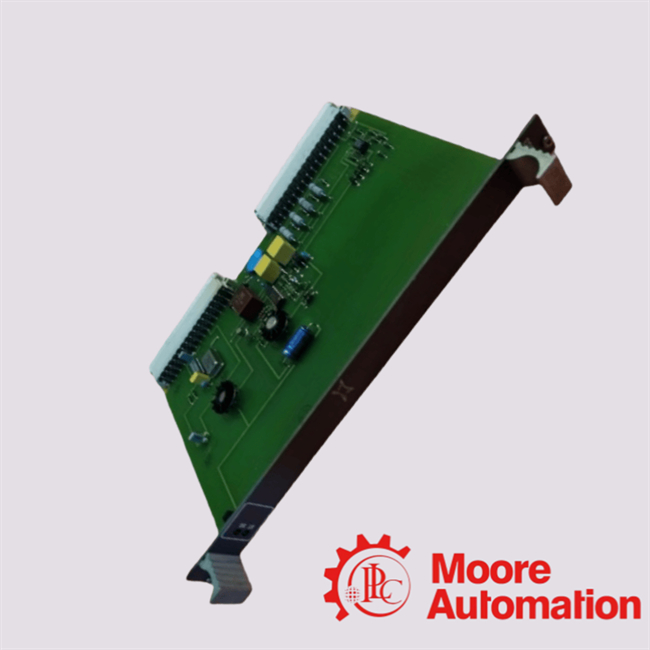

 The Model: GJR2393800R0100 (Catalogue designation: 88QB03B‑E)is described as a dedicated bus termination module for the Procontrol P bus. Its main function is to terminate the “mother ship” bus

to prevent signal reflections and ensure robust signal transmission integrity.It also performs impedance matching between the bus cable and the bus‑driver electronics, thereby improving

communication performance.It also performs impedance matching between the bus cable and the bus‑driver electronics, thereby improving communication performance.

The module is installed at the end of a bus segment in an ABB Procontrol P rack/sub‑rack. One listing states: “The module incorporates the bus termination

for connection of 88QT03 to the PROCONTROL‑PS bus and/or the input/output

 station and the central clock‑pulse supply for 88QT03.”

Q1: What exactly does the 88QB03B-E module do?
A1: It serves as a termination and coupling device for the bus in ABB’s Procontrol system. Its key role is to terminate the bus line at the correct point (to avoid reflections) and to ensure the bus driver electronics

 see the correct impedance and clock-pulse if required. Without it, the bus may suffer communication errors, reflections, or instability.

Q2: Where should this module be installed?
A2: It needs to be installed in a sub-rack/cabinet of the ABB Procontrol system (for example 89MS01/R0100/R0200/R0300 or 89MS02/R0100) and typically placed directly to

the right of module 88QT03-E as part of the rack layout. If your system documentation specifies a

 slot for bus termination, this module goes in that slot.

Q3: How do I know if this variant (88QB03B-E) is correct for my system?
A3: You should check:

The exact part number on your existing termination module or system drawing (GJR2393800R0100 / 88QB03B-E).

That your bus architecture is indeed “Procontrol P” (or Procontrol T) and that your rack supports this module.

That your firmware/hardware revision supports the “B-E” suffix (i.e., the revision version).
Ordering a different suffix (e.g., 88QB03A-E) might

 lead to incompatibility.
