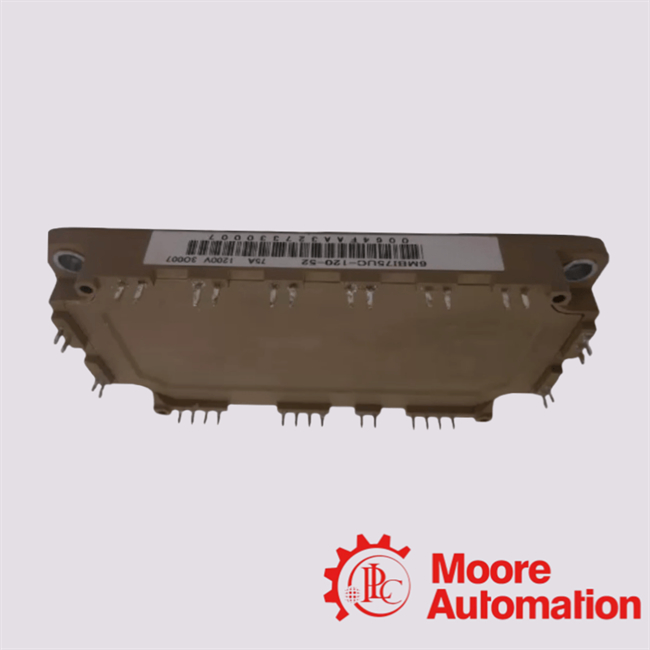

- 6MBI75UC-120-52 IGBT power module
Description
The 6MBI75UC‑120‑52 is a high‑performance IGBT (Insulated‑Gate Bipolar Transistor) power module manufactured by Fuji Electric. According to the datasheet, it belongs to their “U‑Series” of modules rated for
1200 V blocking voltage and 75 A current in a multi‑chip/packaged configuration.The module is marketed for “industrial power conversion applications” and described as
“high‐performance” with “optimized thermal characteristics for reliable operation in demanding environments.”this is a heavy‑duty power semiconductor
module designed for switching large currents at high voltage in inverter, drive, or DC/AC conversion applications.
Feature And Application of 6MBI75UC-120-52 IGBT
| Feature |
Application |
-
High voltage blocking capability (~1200 V) and high current capacity (~75 A) make it suitable for medium/high‑power applications.
-
Integrated IGBT + diode structure (all in one module) simplifies design and reduces board/assembly complexity.
-
Optimized thermal design (as per product description) to enable reliable operation in industrial conditions.
-
Compact module format (for its power class) to allow integration into power electronic assemblies (e.g., inverters, motor drives).
-
From listings: dimensions approx 5.5 × 5.5 × 12 cm and weight ~0.2 kg.
|
-
Variable‑Speed Drives (VSDs) / Motor Drives: Used in the inverter stage to switch DC bus to AC output.
-
Renewable energy inverters: For converting DC (e.g., solar, battery) to AC or interfacing to grid.
-
Uninterruptible Power Supplies (UPS) or large power conversion systems: Where high voltage and high current switching is required.
-
Industrial power modules / high‑power converters: e.g., elevator drives, traction systems, large pumps, compressors.
-
Any application requiring robust, high‑current, high‑voltage switching with fast switching transitions (benefiting from IGBT features).
|
