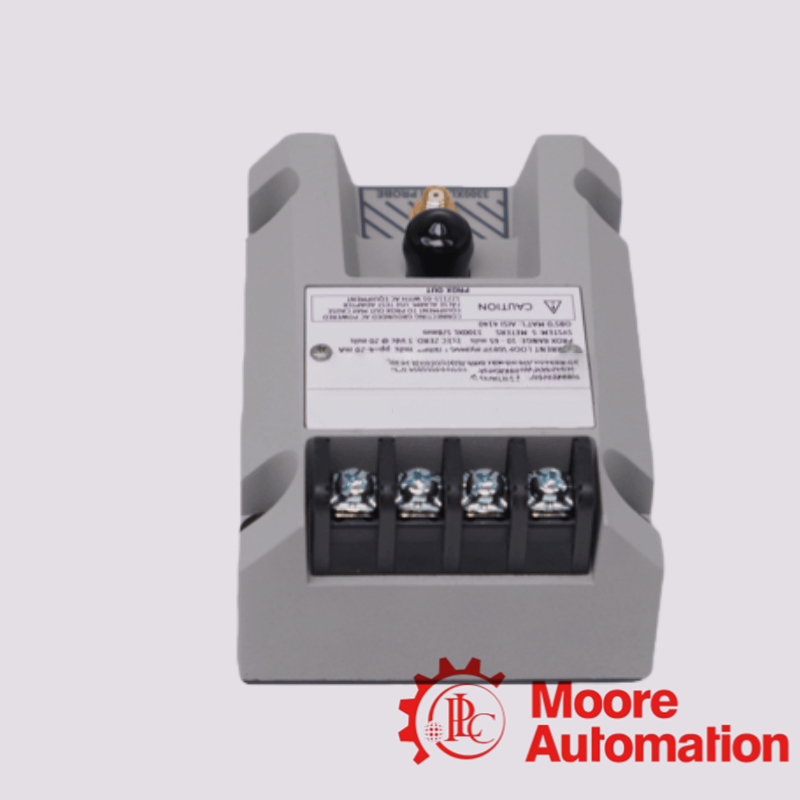

990-05-XX-02-BR 147202-01 Bently Nevada Digital input module
Description
The Bently Nevada 147202‑01 I/O Module (also referenced with the catalog variant “990‑05‑XX‑02‑BR / 147202‑01”)It is intended for use in machinery monitoring systems (rotating equipment monitoring)
and interfaces sensor signals (or field discrete signals) to the higher‑level monitoring/control system.According to one listing, “Available in both analog and digital configurations” under the 147202‑01
umbrella.While many references with 147202‑01 refer to the “990 Vibration Transmitter” family (2‑wire loop transmitter) rather than a pure I/O module, it seems the part number may have
applicability across multiple variant families. For example, the 990 datasheet states “These specifications also
apply to 990 with modifications 147202‑01…”
|
FAQ
|
|
Q1: Is this module a “digital input module” or an analog module?
A: The 147202‑01 designation covers I/O modules which can be analog or digital, depending on the variant. One listing states “Available in
both analog and digital configurations.” Your specific code “990‑05‑XX‑02‑BR 147202‑01” likely designates
a particular version. You should check the variant code (“XX‑02‑BR”) in the ordering guide to confirm
if it’s digital inputs (contacts, 24 VDC logic) or analog inputs.
|
|
Q2: What does the ordering code mean (990‑05‑XX‑02‑BR)?
A: In the Bently Nevada/GE 990 family schematics, the code elements often represent: full‑scale range (“05” meaning 0‑5 mils pp
gap), system length option, mounting option, agency approval option, etc. For example: “05” = 0‑5 mils; “02” may
refer to an option; “BR” may indicate bulkhead mounting plus certain approvals. Similar breakdowns are
seen in data sheets for the 990 transmitters.Thus: make
sure you get the ordering sheet
for full decoding.
|
|
Q3: What sensors does it work with?
A: For the transmitter version of the 990 (which uses 147202‑01 mod), it accepts one non‑contacting 3300 NSv
proximity probe and extension cable. If your module is a generic I/O, it might instead accept
dry contacts or 24V logic signals. Again: consult variant.
|
