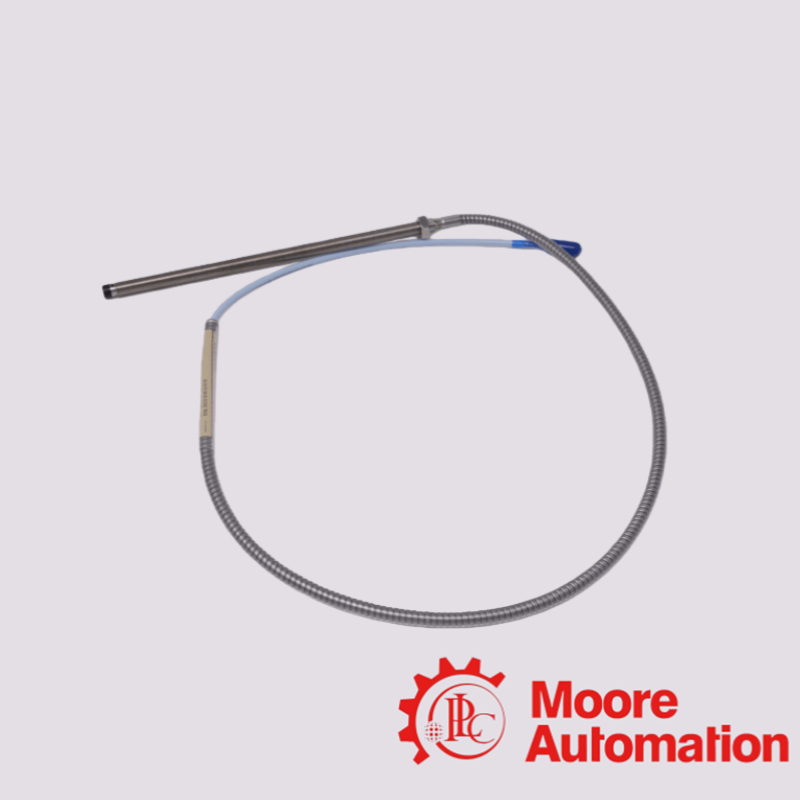

330102-00-44-10-11-05 Bently Nevada Proximity Probe
Description
The part number 330102‑00‑44‑10‑11‑05 corresponds to a proximity probe manufactured by Bently Nevada in their 3300 series (specifically the “8 mm” / 3300 XL 8 mm family) —
though this exact variant may be a “NSv” side‑view optimized version. A supplier listing identifies it as “330102‑00‑44‑10‑11‑05 Bently Nevova 3300 NSv Proximity Probe”.
It is a non‑contacting eddy‐current proximity probe intended to measure the distance (gap) between the probe tip and a conductive target surface (e.g., a rotating
shaft or bearing sleeve). From the 8 mm series datasheet: “The system provides an output voltage that is directly proportional to the
distance between the probe tip and the observed conductive surface and
can measure both static (position) and dynamic
(vibration) values.”
|
FAQ
|
|
Q1: Is this probe compatible with earlier 3300 series (non‑XL) components?
A: Yes, electrically and mechanically the 3300 XL 8 mm probes are backward compatible with earlier 3300 series 5 mm/8 mm components —
but mixing may result in reduced performance (to the older series spec). For optimal performance, use matched
components (probe + extension cable + Proximitor sensor) from the same series.
|
|
Q2: What is the typical probe gap and target material?
A: For the 8 mm series the calibration is typically at a gap of 1.27 mm (50 mils) to an AISI 4140 steel target.
For the NSv variant, specs may use 1.0 mm (40 mils) gap to AISI 4140 target.
If the target material or gap differ, check with manufacturer for
corrected scale factor/linearity.
|
|
Q3: Can this probe be used for both vibration and position measurements?
A: Yes — the underlying transducer system is designed for both static (position) anddynamic (vibration)
measurements. However, the actual measurement bandwidth and accuracy will depend on
system configuration (probe, cable, sensor, monitor) and application. The frequency
response is specified e.g., up to ~12 kHz in one
listing for this part.
|
