330854-080-25-05 Bently Nevada Sensor Proximity Probe
Description

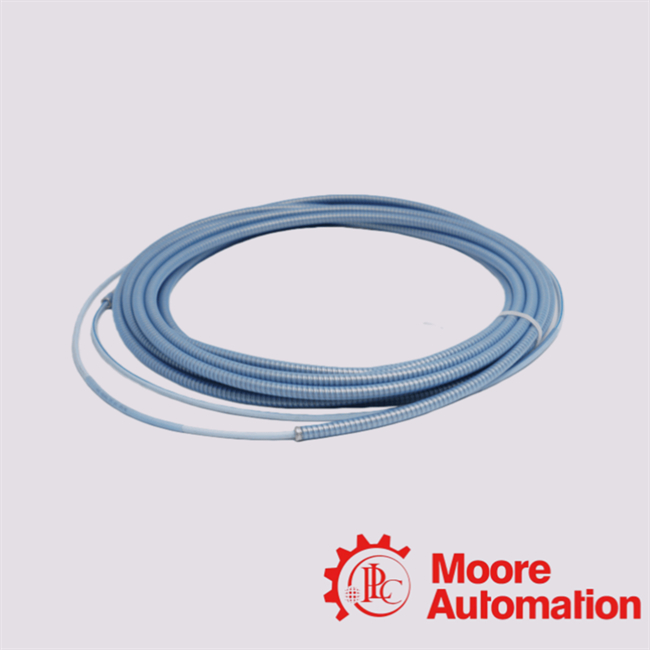

The Bently Nevada 330854‑080‑25‑05 Extension Cable (which is part of the Bently Nevada 3300 XL 25 mm proximity‑transducer family).This item belongs to the Bently Nevada “3300 XL 25 mm” Proximity Transducer
System.The 25 mm version has a nominal output scale factor of ~0.787 V/mm (20 mV/mil) and a linear range of about 12.7 mm (500 mils) when calibrated to a standard target (AISI 4140 steel)
under specified conditions.Part number 330854‑080‑25‑05 is for the extension cable portion of that system (not the probe itself).A high‑performance, armored,
high‑temperature extension cable (~8 m length) for the 25 mm probe system, with FluidLoc cable option, designed for industrial
rotating‑machinery service (e.g., large steam turbines) and approved
for hazardous‑area use.
|
FAQ
|
|
Q1: Is 330854‑080‑25‑05 the probe or the cable?
A1: This part number is not the probe; it is the extension cable for the 25 mm system. The probe part numbers in the 25 mm family
begin with 330851 (or 3308xx etc) for the probe body. The 330854 series denotes the extension
cable. The datasheet shows “Figure 17 330854, 3300 XL 25 mm
Extension Cable”.
|
|
Q2: Can I use this extension cable with a shorter probe length or different system length?
A2: You must ensure that the total system length (probe integral length plus extension cable length) corresponds
to the Proximitor version you use. The datasheet emphasises that the extension cable length
must be appropriate so the system remains calibrated/interchangeable. Using a
mismatched length may reduce linear range
or accuracy.
|
|
Q3: What temperature and environment is this cable rated for?
A3: Because the part includes the “Armored High Temperature FluidLoc cable” option, it is designed for severe
environments. For the 25 mm family, the probe is rated for continuous operation at ~200 °C (392 °F)
and intermittent up to ~250 °C (482 °F). The cable variant likely shares that rugged rating.
It is armored—meaning additional mechanical protection—suitable for high
vibration, steam turbine surroundings, etc.
|
