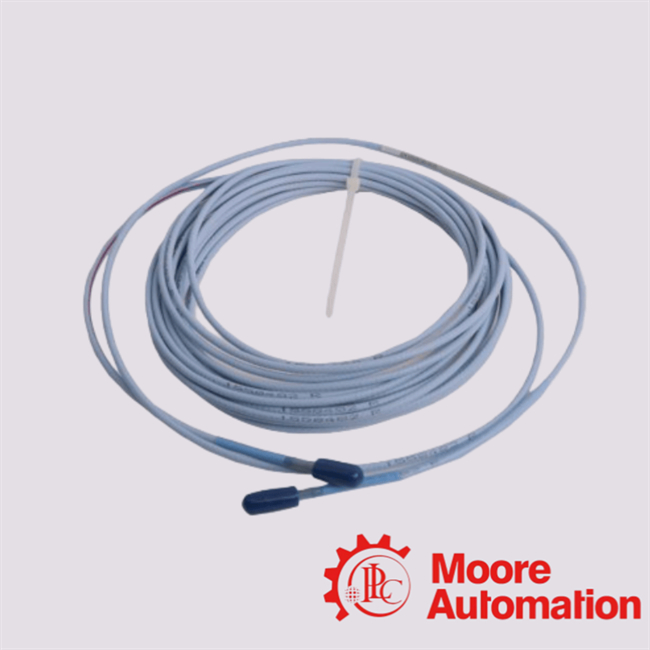

330191-00-33-90-05 Bently Nevada Sensor Probe Cable
Description
The Bently Nevada 330191‑00‑33‑90‑05 Proximity Probe (sometimes listed as “Sensor Probe Cable” but based on the datasheet it is actually a probe head variant). The information is drawn from the manufacturer’s
datasheet for the Bently Nevada 3300 XL 8 mm family and from ordering‑info sources.This part belongs to the 3300 XL 8 mm Proximity Transducer System, specifically the Extended
Temperature Range (ETR) version of the 8 mm diameter probe. The general system (probe + cable + Proximitor) measures the gap (distance) between a conductive
target (e.g., a shaft) and the probe tip, allowing both static position and dynamic vibration measurement.An 8 mm diameter probe (ETR – high temperature
variant) with 3/8‑24 UNF thread, no unthreaded stub, case length ~3.3 in, with 9.0 m cable integral,
and with full hazardous‑area / certification approvals.
|
FAQ
|
|
Q1: What exactly does this part measure?
A1: This probe senses the distance (gap) between its tip and a nearby conductive target (e.g., a shaft). The output of the entire transducer system
is a voltage proportional to that gap, which allows you to monitor static displacement (position) and dynamic displacement
(vibration) of rotating equipment. The high‑temperature (ETR) variant lets you deploy it in
more demanding thermal environments.
|
|
Q2: Is this part an extension cable or a probe?
A2: This part is a probe (specifically, a 3300 XL 8 mm ETR probe). Some listings may label it as “Sensor Probe Cable” but based
on the official datasheet listing for 330191 it is a probe head with integral cable (9 m). The “90” in the part number
indicates 9.0 m total length option which includes the cable length.
|
|
Q3: I only need a cable, not a full probe. Could this part be used as a cable?
A3: No — this part is a probe with integral cable (9 m length). If you only need an extension cable to attach to a
separate probe, you should look at the extension‑cable part numbers in the 3300 XL family (for example
part numbers starting 330130 for standard cable, or 330190 for ETR cable) in the datasheet.
Using a probe head part when you need just a cable
would be inefficient. listing for
this part.
|
