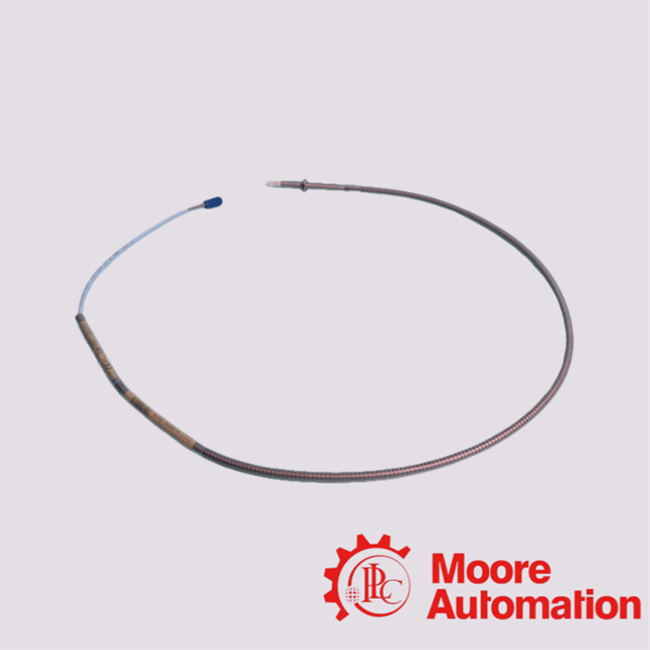

330904-00-09-10-02-05 Bently Nevada Proximity Probes
Description
The330904-00-09-10-02-05 probe is part of the Bently Nevada 3300 XL NSv/NSv (Non-Standard view) proximity transducer family. Key features:“330904” → indicates the probe series: NSv probe, M8×1 thread, with armor.“00” →
unthreaded length option (0 in)“09” → overall case length variant (9.0 in or 90 mm) (based on similar parts, e.g., 330904-00-09-05-02-05)“10” → cable/total length option (1.0 m) (in many listings
“10 = 1.0 metre”)“02” → connector/cable-type option (Miniature coaxial ClickLoc connector, standardcable)“05” → agency approval or multi-certified version (for hazardous areas etc)This
is a rugged, armored eddy-current proximity probe from the Bently Nevada 3300 XL NSv family, with M8×1 mounting, 1 m cable, for use in confined installation environments
or smaller target machines, suitable for static/vibration monitoring in heavy industrial/rotating
machinery applications.
|
FAQ
|
|
Q1: What is the sensing principle of this probe?
A1: It is a non-contacting eddy-current proximity transducer: The probe tip monitors the gap between the tip and a conductive target (e.g., a rotating
shaft). As the shaft moves closer or further from the probe, the eddy-current effect changes the voltage output, which the
associated sensor (Proximitor®) converts to a displacement or vibration signal.
|
|
Q2: Is this probe interchangeable with other Bently ‘3300’ series probes?
A2: Yes with caveats: The NSv probe is mechanically and electrically compatible with older 3300 RAM probes in many cases.
However, when upgrading or mixing systems you must ensure that the entire chain (probe + extension cable + Proximitor
sensor) is of the same family if you want full performance (linear range, calibration).
|
|
Q3: What mounting/thread details should I check?
A3: For “330904” series: thread is M8×1, with armor (probe cable is armored). Ensure the mounting hole/thread
in your equipment matches M8×1. Also ensure correct lock-nut and
wrench flats as per datasheet.
|
