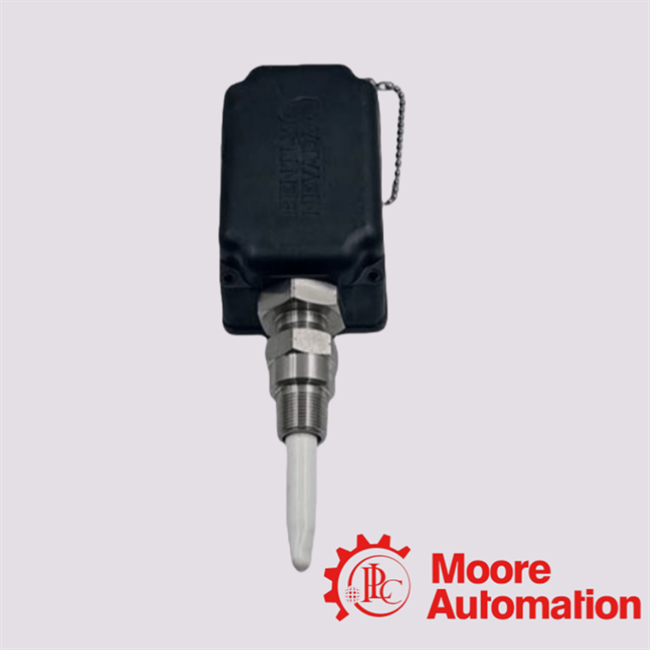

330881-16-00-175-00-02 Bently Nevada Proximity Transducer
Description
The 330881-16-00-175-00-02 is a rugged, integrated proximity transducer system (probe + sensor + housing) designed for industrial rotating machinery monitoring, using a
3300 XL 8 mm probe, with a 175 mm penetration length, standard mount, no extra standoff, and standard thread. It is built for harsh
environments (IP66/Type4X) and simplifies installation
by combining components.
|
FAQ
|
|
Q1: What is the sensing principle?
A1: The system is based on a non-contacting eddy-current proximity probe (3300 XL 8 mm probe) which monitors the gap between its tip and a conductive rotating shaft (or target). That displacement (static or dynamic) is converted into a voltage signal by the sensor.
|
|
Q2: What are typical applications?
A2: Used in rotating equipment (turbines, compressors, generators) for monitoring shaft vibration/displacement and position,
and in compliance with standards like API 670 (when the system is properly configured). The PROXPAC XL
version is especially useful where integrated housing/sensor is preferred
(reducing cables) and in harsh environments.
|
|
Q3: Can I replace an older transducer with this part?
A3:Possibly — if the older transducer is of compatible family (3300 XL 8 mm probe) and the mounting, penetration,
target geometry, and approvals match. However: you must ensure that the system (probe, housing,
sensor) remains within calibration, linear range and that the monitor input meets the
requirements. Mixing mismatched parts may
reduce performance.
|
