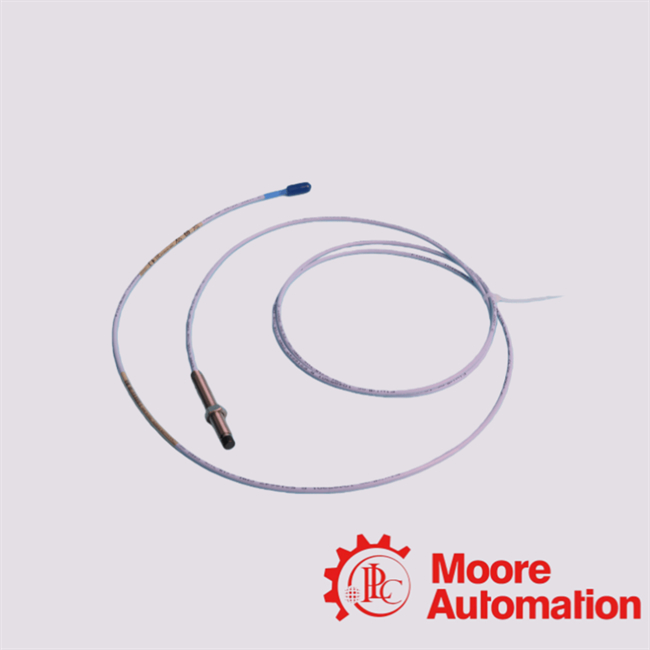

330101-00-25-05-01-05 Bently Nevada Proximity Probe
Description
The probe labeled 330101-00-25-05-01-05 comes from the Bently Nevada 3300 XL 8 mm Proximity Transducer System — which is a non-contacting eddy-current displacement/vibration
measurement probe system designed for machinery protection and condition monitoring.The “8 mm” refers to the nominal diameter of the probe tip for this series (≈ 0.31 in)
— offering robust mechanical construction and good interchangeability with older 5 mm/8 mm systems.According to the datasheet, the probe
series supports components that are electrically and physically interchangeable
(for 8 mm series) when used in full 3300 XL
8 mm system.
|
FAQ
|
|
Q1. What does the “330101” prefix mean?
A: The prefix “330101” identifies the probe model in the 3300 XL 8 mm series with 3/8-24 UNF thread and without armor. According to the datasheet ordering information, 330101 = 3/8-24 UNF thread without armor for 8 mm standard mount probes.
|
|
Q3. What linear measurement range can I expect from this probe/system?
A: For the 3300 XL 8 mm system, typical linear range begins at ~0.25 mm (10 mils) and goes up to ~2.3 mm (90 mils) for the
standard 5 m system (though your specific cable length and target conditions can affect this).
Always check the keypad for your particular probe/cable/Proximitor
combination.
|
|
Q4. What target material and size does the spec assume?
A: The system accuracy/interchangeability specs assume calibration to an AISI 4140 steel target, 31 mm (1.2 in)
diameter or larger (for 8 mm system). If a different material or geometry
is used, performance may deviate.
|
