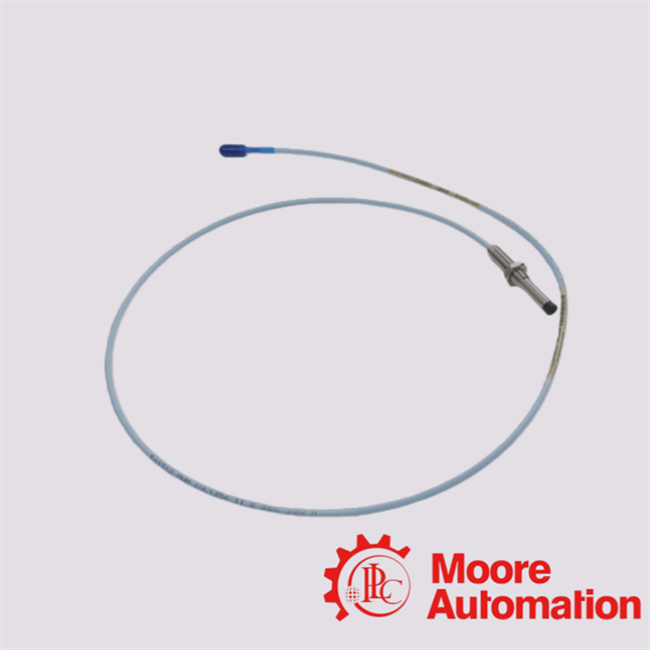

330103-02-08-10-02-00 Bently Nevada Proximity Probe
Description
The 330103‑02‑08‑10‑02‑00 is a specific variant of the 3300 XL 8 mm Proximity Transducer System probe. The 8 mm series is designed for non‑contacting eddy‑current
measurement of shaft/target displacement (both static position and dynamic vibration) in rotating equipment (e.g., turbines, compressors, pumps)
with fluid‑film bearings. This probe is part of a system along with a matching extension
cable (or integral cable) and a Proximitor® sensor.
|
FAQ
|
|
Q1: What does “330103” mean?
A1: It identifies the probe model: 3300 XL 8 mm Probe, metric thread M10 × 1, without armor.
|
|
Q2: Can I use this probe with a Proximitor sensor from a different series (e.g., 11 mm or NSv)?
A2: For full spec performance and interchangeability, you should use the probe, extension cable (or integral cable) and Proximitor
sensor all from the same 3300 XL 8 mm series. Mixing series may degrade specification compliance
(linearity, interchangeability) or reduce performance.
|
|
Q3: What gap should I set between probe tip and target?
A3: For the 8 mm series the reference gap is about 1.27 mm (50 mils) for standard radial vibration
measurement. Actual installation must consider target size, shaft
geometry and OEM instructions.
|
