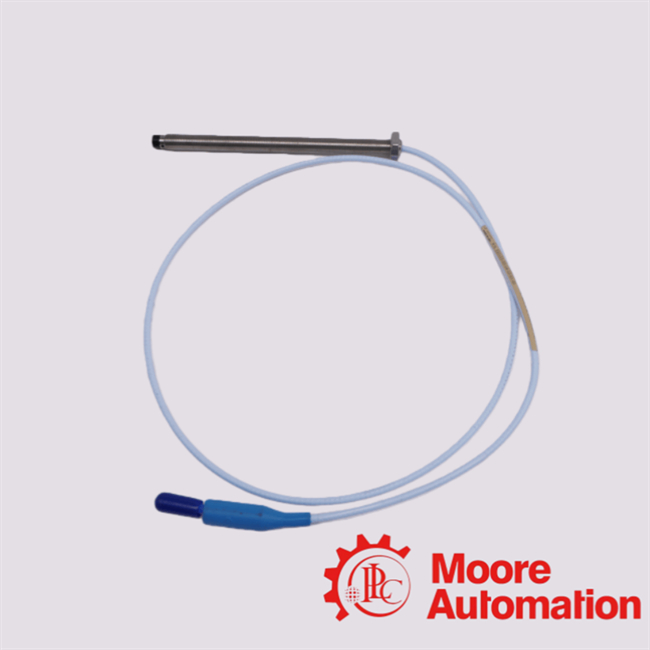

330103-00-14-50-02-00 Bently Nevada Proximitor Probe
Description
The Bently Nevada 330103-00-14-50-02-00 is An 8 mm-tip Bently Nevada 3300-XL proximity (eddy-current) probe assembled as a probe + integral extension cable for use with the 3300-XL Proximitor
sensor family. The suffix -14 indicates a 140 mm case length, -50 a 5.0 m total (integral) cable, -02 the miniature ClickLoc coax connector
with standard (non-FluidLoc) cable, and 00 no special approvals.
| Feature |
Application |
-
8 mm tip for robust contact face and improved mechanical durability.
-
M10 × 1 thread, 70 mm case length (-07 = 70 mm), 5.0 m integral cable (-50) with ClickLoc connector (-02).
-
Linear measurement range: approx 0.25 mm → 2.3 mm (10–90 mils) — typical spec for the 8 mm XL system.
-
Recommended operating gap (radial / vibration): ~1.27 mm (50 mils) for usual vibration monitoring setups.
-
Frequency response: designed for dynamic vibration measurement (typical system response up to several kHz depending on wiring/Proximitor configuration).
|
- Vibration monitoring of rotating machinery (bearings, turbines, compressors, motors) — used as the primary sensor for machinery protection and condition monitoring (API-670 style instrumentation).
- Static shaft position / radial displacement (slow or DC shaft movement measurements).
- Axial/thrust position monitoring where a robust 8 mm tip is preferred.
- Keyphasor / phase reference signals if configured with the matching sensor electronics.
- Harsh industrial environments where a standard (or optionally FluidLoc) cable is required; choose FluidLoc or sealed variants if oil-ingress is a concern.
|
