330103-00-05-05-02-00 Bently Nevada Proximity Probes
Description

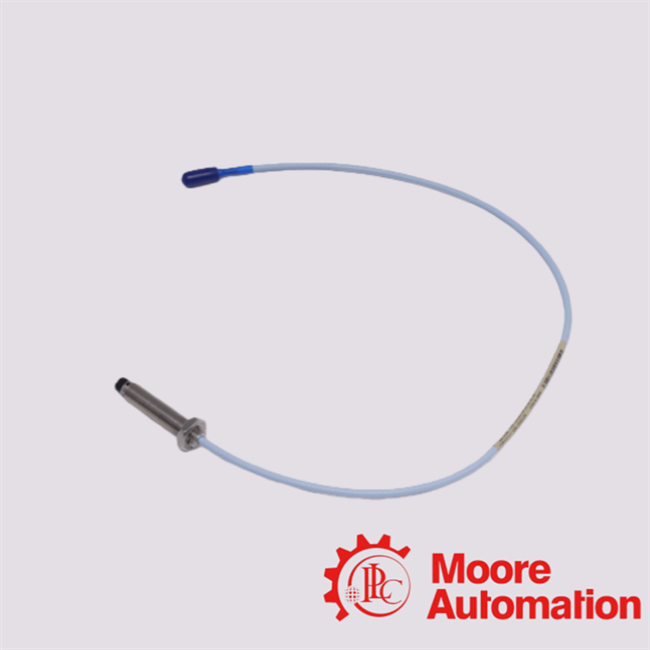

The Bently Nevada 330103‑00‑05‑05‑02‑00 proximity probe is a 3300 XL 8 mm proximity transducer probe.“330103” is the base model code indicating: 8 mm probe, M10 × 1 thread, without armor.
Bently Nevada 330103‑00‑05‑10‑02‑00 Probe — same probe body but 1.0 m cable instead of 0.5 m.Bently Nevada 330103‑00‑04‑10‑02‑05 Probe — 30 mm case length,
1.0 m cable, with hazardous‑area approvals.When used with a 3300 XL Proximitor sensor, the system requires –17.5 Vdc to –26 Vdc supply.
Feature and Application of 330103-00-05-05-02-00
| Feature |
Application |
-
Compact design: The 50 mm case length makes it relatively short, which is helpful when installation space is limited.
-
Robust construction: Stainless steel body provides good mechanical strength; PPS tip adds chemical and thermal resistance.
-
Reliable connector: The ClickLoc connector provides a secure, tool-free “click” locking mechanism so it doesn’t loosen in operation.
-
High-temperature capability: As noted, it tolerates a very wide operating temperature range.
-
Good environmental resistance: Moisture resistance tested up to very high humidity; sealing helps for differential pressure conditions.
-
Interchangeability: Because it's part of the 3300 XL system, you can mix and match it with other XL (or even non-XL) probes, cables, and sensors without needing to bench-calibrate each combination
|
This probe is typically used in industrial condition‑monitoring / vibration monitoring systems, especially in rotating machinery. More specifically:
-
Vibration monitoring on fluid-film bearing machines: Because it can measure both static (position) and dynamic (vibration) displacement.
-
Position (static) monitoring: For example, radial position of shafts or components.
-
Keyphasor (speed / phase reference): In systems where you need a reference signal for rotation (phase, speed), this probe + 3300 XL sensor setup is common.
-
High-reliability / API‑compliant systems: The 3300 XL system is designed to meet API 670 (4th Edition) standard requirements for linear range, accuracy, and temperature stability.
-
Harsh environment machines: Due to its sealing, temperature tolerance, and robust construction, it’s suitable for applications in power plants, compressors, turbines, and other industrial machinery.
|
