21000-34-05-15-29-04-02 Bently Nevada Proximity Housing Assemblies

Name: 21000-34-05-15-29-04-02 Bently Nevada Proximity Housing Assemblies
Brand: MOORE AUTOMATION LIMITED
SKU: 21000-34-05-15-29-04-02
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CO.CQ
Model Number:	21000-34-05-15-29-04-02

Detail Information

Place of Origin:

USA

Brand Name:

Bently Nevada

Certification:

CO.CQ

Model Number:

21000-34-05-15-29-04-02

Description:

Proximity Housing Assemblies

Part Number:

21000-34-05-15-29-04-02

Brand:

Bently Nevada

Manufacture Year:

2020

Application:

Nuclear Power Plant

Lead Time:

In Stock

Weight:

4lbs

Highlight:

High Light

Highlight:

Bently Nevada proximity housing assemblies

Bently Nevada 3500 system components

proximity sensor housing assemblies

Trading Information

Minimum Order Quantity:

Price:

inquiry

Packaging Details:

new and original with factory sealed

Delivery Time:

today

Payment Terms:

T/T

Supply Ability:

10 pieces a day

Product Description

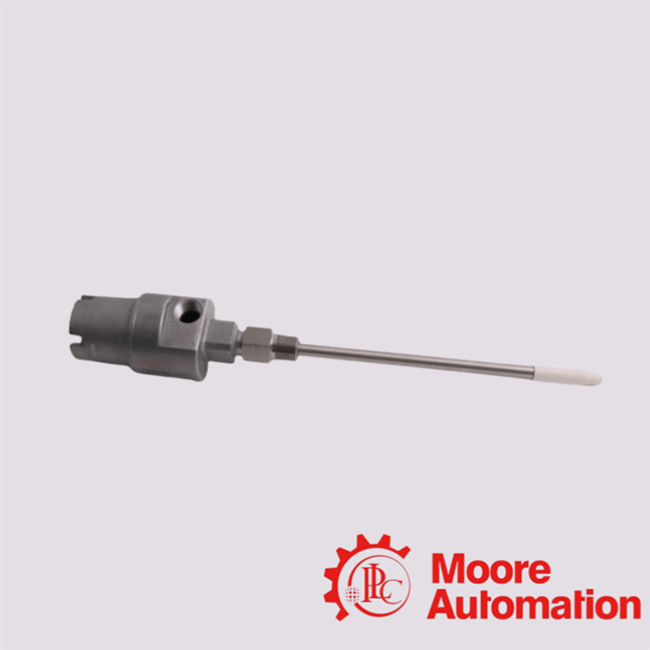

21000-34-05-15-29-04-02 Bently Nevada Proximity Housing Assemblies

`Description`

The 21000-series housing is a well-established, rugged solution for mounting proximity probes externally on machines.The suffixes (“34‑05‑15‑29‑04‑02”) mostly make sense except for “29” — likely that is an

error / mis-typed value for the penetration (D) field.If you meant something like 21000‑34‑05‑15‑056‑04‑02, then you’d have a 3300 XL 8 mm probe + 0.5 m cable + 1.5 in standoff + 5.6

in penetration + one 3/4‑14 NPT plug + 3/4‑14 NPT mounting.This assembly is very useful in applications where you need to protect the probe, but also

want to maintain serviceability (gap adjustment, probe replacement) without taking apart the machine.

Feature and Application of 21000-34-05-15-29-04-02

Feature

Application

Robust & Metallic Construction
- Aluminum housing for lighter weight, but stainless steel sleeve for durability.
Modular Design
- Standoff adapter: you can choose how far the probe is from the mounting point.
- Probe sleeve: optional lengths, based on how deep or where you need to mount.
- Conduit ports: threaded, so you can plug or wire in as needed.
Sealing & Protection
- O‑rings provide sealing; thread seal helps maintain integrity.
- The dome cover screws in, protecting the probe and internal cable.
Safety / Hazard Protection
- CSA-rated (explosion-proof type) versions available for hazardous zones.
- Certified to API 670 for machine monitoring compliance.
Serviceability
- Because the housing gives external access, you can do gap adjustments (set the distance between probe and target) without disassembling the machine.
- You can replace the probe in‑situ if needed.

Rotating Machinery Monitoring
- Used in condition‑monitoring systems for turbines, compressors, motors, and other machines where proximity probes measure vibration, shaft position, or displacement.
Industrial / Petrochemical
- Particularly suitable in environments where probes need to be mounted externally but still require protection (e.g., oil, dust, conduit environments).
Hazardous Areas
- With the CSA explosion‑proof version, it's used in hazardous locations (flammable atmospheres, etc.).
API-Compliant Machines
- Because it's API 670 compliant, it's good for critical machines where standard vibration‑monitoring practices are required.
Maintenance-Friendly Installations
- Where it's advantageous to be able to re‑adjust or replace probes without disassembling the machine internals.
