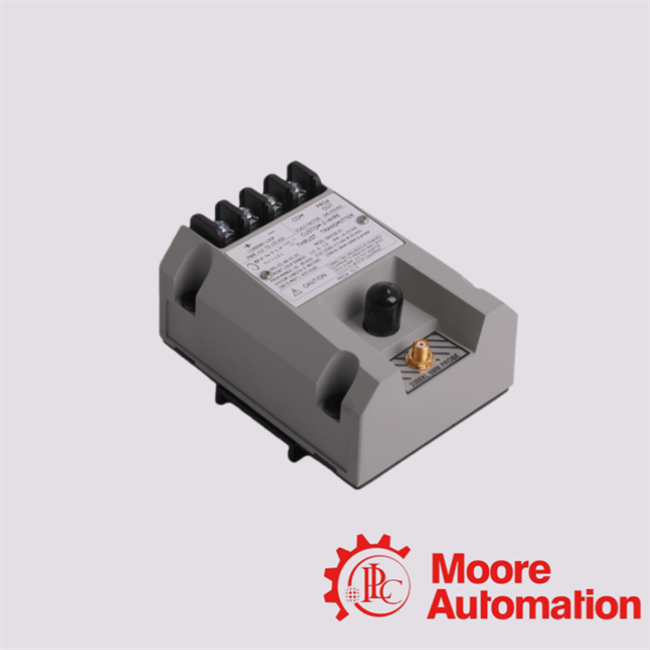

991-01-XX-01-00 MOD: 284318-01 Bently Nevada Thrust Transmitter
Description
The 991 Thrust Transmitter is a 2-wire, loop-powered device designed to convert axial shaft displacement (i.e., thrust) into a 4–20 mA signal for control systems.It takes input from a 3300 NSv proximity probe
plus its matched extension cable (system-length options like 5 m or 7 m are supported).The transmitter conditions the raw proximity signal into “engineering units” of axial position and
then converts that into the standard analog current loop output.Physically, the unit is relatively compact (~100 × 74 × 53 mm) and weighs around 0.43 kg per vendor spec.
The housing is made of stainless steel, providing ruggedness and some environmental protection.Environmental rating: some sources say IP67,
meaning good protection against dust and water ingress.Power supply requirement:
typically 12 V to ~35 V DC for loop power.
Feature and Application of 991-01-XX-01-00 MOD: 284318-01
| Feature |
Application |
|
|
-
OEM Machinery: Specifically designed for OEMs (original equipment manufacturers) of centrifugal air compressors, small pumps, motors, and fans that need a simple, analog thrust (axial position) signal for control or protection systems.
-
Machinery Control Systems: Used in applications where axial displacement (thrust) needs to be converted into a current loop signal to feed into PLCs, DCS, or other control hardware.
-
Trending & Alarming: While not a full “vibration protection system” module, it supports thrust trending and “Not OK” detection; alarms can be built in via the 4–20 mA signal to indicate abnormal axial movement.
-
Diagnostic Use: The “PROX OUT” coaxial connector allows dynamic (vibration) signal extraction — useful for maintenance teams to monitor or troubleshoot via handheld analyzers.
-
Harsh / Humid Environments: Because of the potted construction and wide temperature tolerance, it’s appropriate for industrial environments where moisture or condensation may be present.
|
