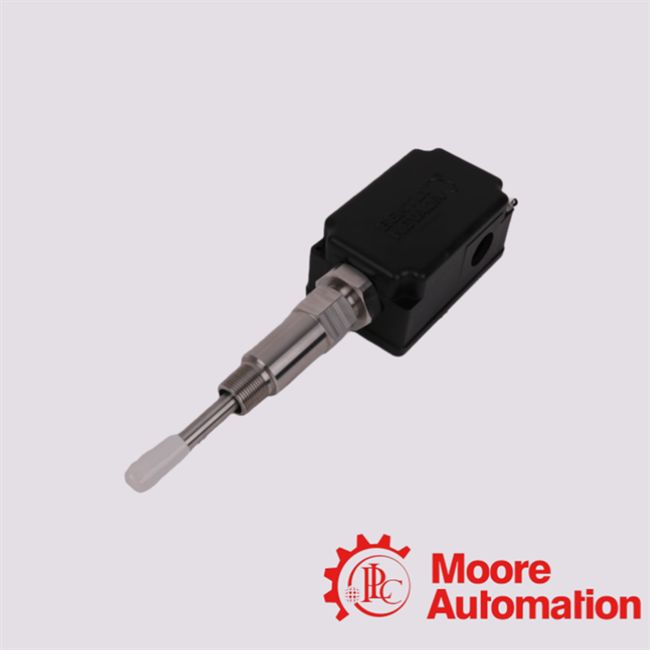

31000-28-05-00-037-03-02 Bently Nevada Proximity Probe Housings
Description
The 31000 series probe‑housing from Bently Nevada is designed to house one of their proximity probes (e.g., from the 3300 XL family) and mount it through a machine case. The housing
provides mechanical, environmental and mounting support, enabling the probe to be installed and adjusted without disassembling the machine casing.a housing labeled
“31000‑28‑05‑00‑037‑03‑02” likely means: 31000 series housing, configured with a 3300 XL 8 mm probe (multiple approvals), 0.5 m cable,
no standoff, penetration 3.7 in, fittings option #3, mounting thread ¾‑14 NPT.
|
FAQ
|
|
Q1: What exactly does this housing protect against and what doesn’t it?
A1: It provides mechanical support, environmental sealing (dust, water spray) and mounting convenience for the probe. It is rated for things
like IP66 (dust-tight, water jets) and 4X (corrosion‑resistant) when installed. However, it is not explosion‑proof unless specifically
configured or unless you select a different housing (for explosion‑proof you’d use e.g. the 21000 or 24701 series).
|
|
Q2: Can I use this housing in a high‑temperature or high‑pressure environment?
A2: For temperature: The standard material rating is approx. –51 °C to +105 °C. So within that range it is acceptable. If you have
extreme temperatures, you’ll need to verify special materials/options. For pressure: It is designed for mechanical protection,
but the datasheet explicitly notes that it is not designed to resist internal or external pressure (i.e., it is not
pressure‑sealed for high pressure fluid environments).
|
|
Q3: How do I adjust the probe gap / replace the probe without disassembling the machine?
A3: The housing allows external access: you mount the sleeve through the machine case, then the housing cover is removable
so you can access the probe and extension cable. According to the specification: “Use of a Proximity probe housing
allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe
replacement without disassembly of the machine.”
|
