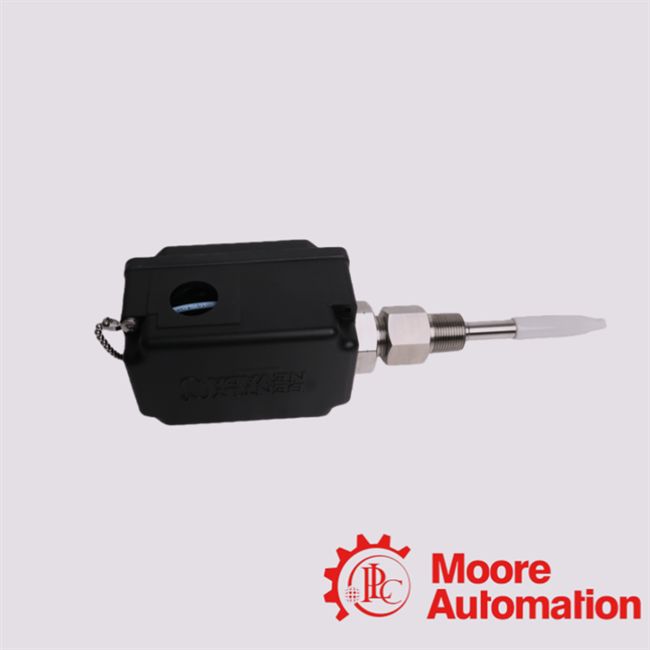

330880-00-20-038-00-02 Bently Nevada Proximity Transducer Assembly
Description
The 330880 series PROXPAC XL from Bently Nevada is a self‑contained proximity (vibration/position) transducer assembly that integrates a proximity probe, housing, and the Proximitor (sensor
electronics) into one unit. According to the datasheet:It uses a built‑in sensor (e.g., a 3300 XL Proximitor) inside the housing, eliminating the need for a separate Proximitor housing and
extension cable.The housing is made of a glass‑ and conductive‑fiber reinforced Polyphenylene Sulfide (PPS) thermoplastic material, providing strong mechanical
durability and electrostatic dissipation.The housing is rated for Type 4X / IP66 environments, offering protection
against harsh conditions (dust, water, condensation) when properly installed.
|
FAQ
|
|
Q1: What does the “PROXPAC XL” actually mean?
A: PROXPAC XL is the model name for Bently Nevada’s proximity transducer assembly product line that integrates the probe, the Proximitor sensor, and the housing into a compact unit. The “XL” indicates the use of the 3300 XL series proximity probe/sensor.
|
|
Q2: My machine shaft is very small (say < 2 in diameter); is there a limitation?
A: Yes — the datasheet states that when gapped at the center of the linear range, the cross‑talk between two separate transducers will be <50 mV on shaft diameters of at least 50.8 mm (2.0 in) or greater. For shaft diameters smaller than 76.2 mm (3.0 in), radial vibration or position measurements
may result in a change in scale factor.So if your shaft is smaller, you may need to evaluate performance
and scale factor or consider alternate sensing arrangement.
|
|
Q3: Can this assembly be used in a high temperature or steam environment?
A: The probe tip is rated up to +177 °C (351 °F) as per datasheet. The housing/sensor part is rated up to +100 °C (212 °F) typical.
However, the datasheet also cautions about prolonged exposure to hot water or steam: while brief contact (≤1 week)
at ~95 °C (203 °F) condensing steam should not significantly affect the plastic housing, longer exposure may
reduce housingstrength by approximately half. Therefore for high temperature/steam environments,
consider protective measures or alternate product.
|
