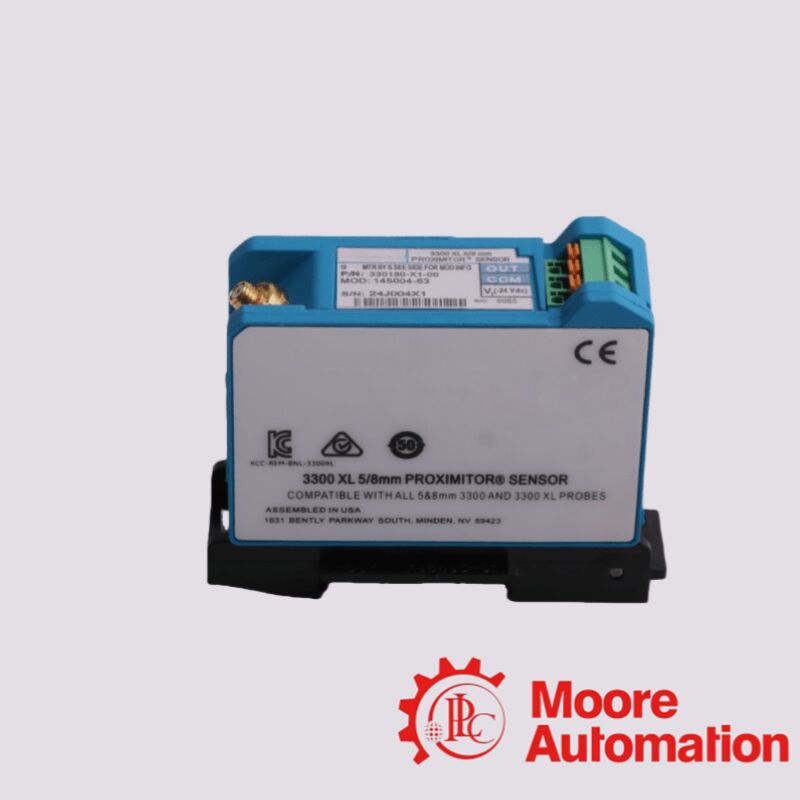

330180-X1-05 MOD:145004-90 Bently Nevada Proximitor Sensor
Description
The part is a Proximitor® (non‑contacting displacement/vibration/position) sensor from the Bently Nevada 3300 XL family. The “330180” is base model number for the 3300 XL Proximitor Sensor. For example:
product listings show “330180‑X1‑05 MOD:145004‑90 Bently Nevada Proximitor Sensor”.This sensor works together with a matching probe (and extension cable) in the 3300 XL system
to monitor the distance between the probe tip and a conductive target disc or shaft, enabling vibration/displacement monitoring in
rotating machinery. The general 3300 XL system is described in the datasheet.
|
FAQ
|
|
Q1: What difference does the “MOD:145004‑90” make?
A: It indicates the sensor has been modified/calibrated under datasheet modification number 145004 for a specific target material (variant 90). That means the internal calibration of the sensor is set for that target, which can improve accuracy for that application. However, it also means you need to ensure
the rest of the system (probe, target geometry, material) matches this calibration, otherwise measurement accuracy may degrade.
|
|
Q2: Can I substitute this sensor for any 330180 model?
A: Possibly, yes, since the 3300 XL sensor family is designed for interchangeability. However, because this variant has a specific modification
(“‑90”), you must ensure the application conditions (target material, gap, cable length, probe type) are compatible. If you just
pull any 330180 sensor with different calibration or target setting, you may introduce error.
|
|
Q3: What kind of target material does this sensor work with?
A: The base system assumes AISI 4140 steel for the target (per the 3300 XL datasheet). When a sensor is “modified” per 145004,
it may be calibrated to another target material (for example 42 Cr Mo 4, etc). You must confirm the target material the sensor
was calibrated for, and ensure the installed target matches.
|
