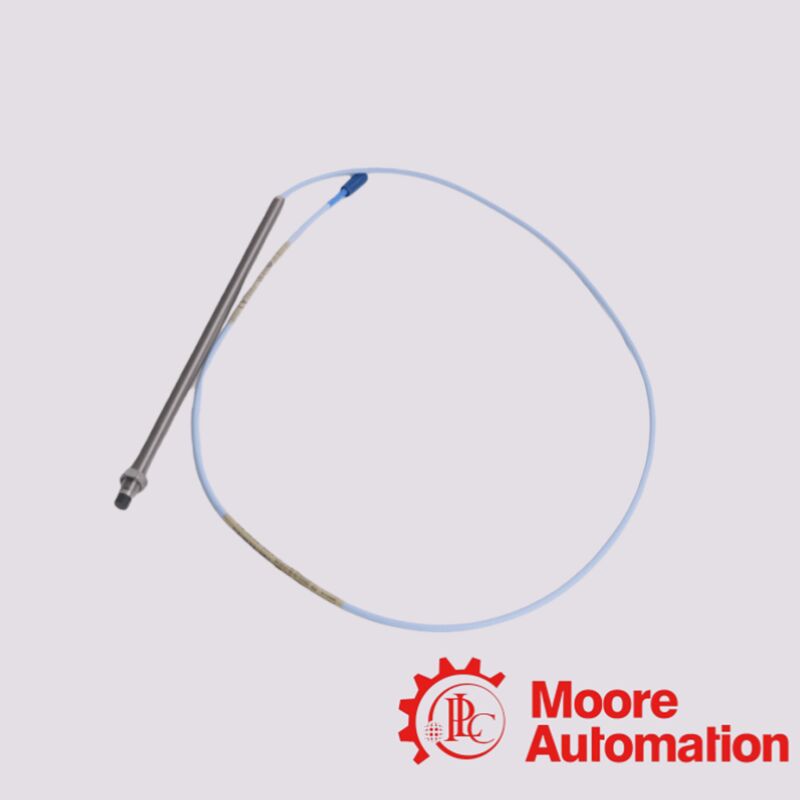

330101-00-12-10-11-05 Bently Nevada Sensor Probe Cables
Description
The 330101‑00‑12‑10‑11‑05 refers to a 3300 XL 8 mm Proximity Probe + extension‑cable assembly (or at least the cable + probe portion) from Bently Nevada’s 3300 XL Proximity Transducer System.The system provides an output voltage
proportional to the distance between the probe tip and a conductive (metal) target. This allows both static position measurement (e.g., shaft or rotor position) and dynamic measurement (e.g., vibration, rotor run-out, or oscillation).
The 3300 XL system (thus including this cable + probe) is widely used in industrial machinery: fluid‑film bearing machines, turbines, pumps, rotating
shafts — anywhere you need precise, non-contact measurement of shaft/rotor displacement or vibration.
|
Frequently Asked Questions of 330101-00-12-10-11-05
|
|
Q: Can I mix this cable/probe with other 3300-series components?
Yes. The design of the 3300 XL transducer system allows full interchangeability among probes, extension cables, and sensors — including compatibility between XL and non‑XL 3300 5 mm or 8 mm components. That means you do not need to bench‑calibrate or match each individual
component if you stay within the system family.
|
|
Q: What connector / cable type is used, and is it robust?
The 330101‑series cables/probes use Bently’s ClickLoc miniature coaxial connectors, which are gold‑plated and corrosion-resistant. These connectors
“click”when properly secured (finger‑tight), and a locking mechanism helps prevent accidental loosening. No special tools needed.
This design ensures good electrical contact, ease of installation, and reliability — even in industrial environments. Additionally,
many 3300 XL components can be ordered with or without connector protectors; using protector boots is recommended,
especially if cables will run through conduit or harsh environments, to guard against
moisture or contaminants.
|
|
Q: What are typical environmental or operational limits?
The standard 3300 XL probe/cable assemblies operate over a wide temperature range, which supports many industrial applications.
For harsh or high-temperature environments, Bently Nevada offers “Extended Temperature Range (ETR)” cables and probes
that exceed the standard temperature limits. Beyond temperature, because 3300 systems are widely used across industrial
machinery, they are designed for robustness, stable signal output, and long-term reliability — provided installation
and handling guidelines (bend radius, shielded wiring, connector protection) are followed.
|
