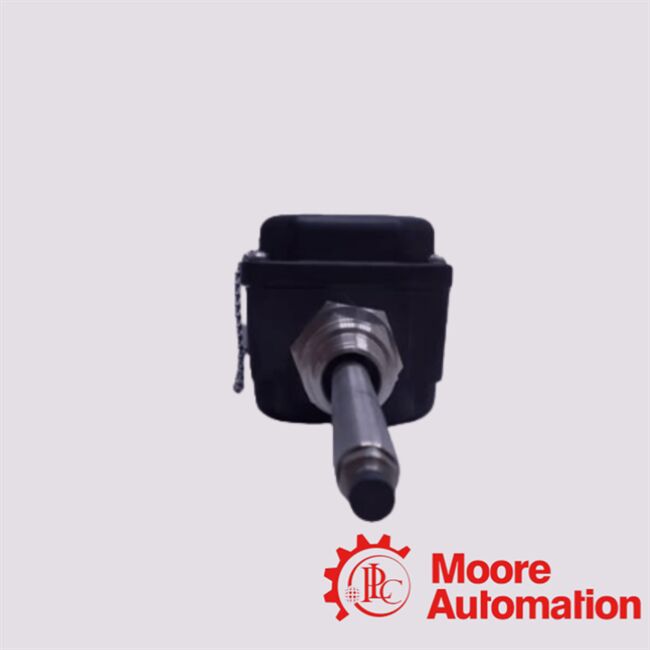

330881-28-04-150-00-02 Bently Nevada Proximity Transducer
Description
The 330881‑28‑04‑150‑00‑02 is part of the PROXPAC XL series of proximity transducer assemblies from Bently Nevada.PROXPAC XL assemblies integrate the probe and the sensor into a single self‑contained unit — eliminating the need for a separate extension
cable or external Proximitor housing.The housing material for PROXPAC XL is a molded thermoplastic — specifically a glass‑/conductive‑fiber‑reinforced Polyphenylene Sulfide (PPS). This material improves environmental resistance and helps dissipate
electrostatic charges.The housing is rated for harsh environments, compliant with Type 4X (i.e. suitable for wash‑down / corrosive environments) and IP66 (dust‑tight and protected against powerful water jets) standards.As with other 3300‑series
systems, the transducer measures (via eddy‑current based sensing) the distance between the probe tip and a conductive target surface. This displacement information can be used for both static position measurement and dynamic vibration
monitoring of rotating machinery (e.g. shafts on fluid‑film bearing machines).In short: this transducer is a rugged, integrated, eddy-current displacement / vibration sensor designed for industrial rotating
machinery — well-suited for harsh environments and critical condition-monitoring applications.
|
Frequently Asked Questions of 330881-28-04-150-00-02
|
|
Q: What does “PROXPAC XL” mean?
A: “PROXPAC XL” is Bently Nevada’s integrated assembly version of their proximity transducer system. Instead of separate probe, extension cable, and Proximitor sensor components, PROXPAC XL combines them into a self-contained unit — simplifying installation and reducing points of failure.
|
|
Q: What environments is this transducer suitable for?
A: Its PPS housing is rated Type 4X and IP66 — meaning it is dust‑tight and protected against strong water jets, and robust enough for wash‑down or corrosive industrial environments.
|
|
Q: Is it compatible with existing 3300-series components?
A: The PROXPAC XL assembly is designed to remove the need for separate cables/sensors, so it is a self-contained replacement. For standard 3300-series 8 mm probe systems, similar performance and interchangeability existed (probes, cables, sensors) — but for PROXPAC XL you replace the complete assembly rather than mixing parts.
|
