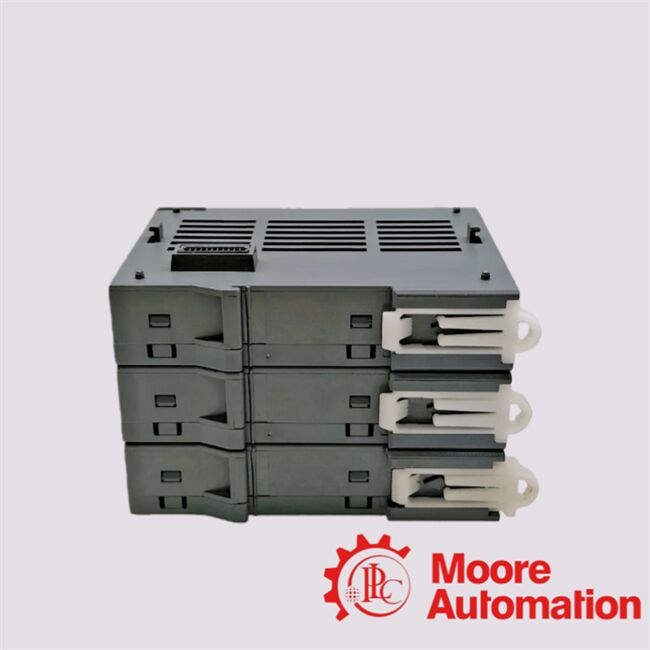

MLE−TN16A HONEYWELL Relay output Module
| Product Description |
|
The MLE‑TN16A is a digital output expansion module for the MasterLogic-50 (ML50) PLC system from Honeywell.Specifically, it's a 16‑point
open‑collector (transistor sink) output module — i.e. 16 independent digital output channels.It is used when you need the PLC to drive
external DC loads: e.g. DC coils, indicator lamps, small actuators, or interface circuits that accept transistor‑type sink outputs.
As an expansion module, it mounts on the ML50 I/O rack alongside other I/O modules
(inputs, other outputs, analog I/O, etc.).
|
| More Technical Data |
| Module type |
Digital output — open‑collector (transistor, sink type) |
| Number of input points |
16 points (channels) |
| Rated input voltage |
DC 12 V or 24 V |
| Power supply requirement |
DC 12/24 V (±10%) with allowable ripple (ripple ≤ 4 Vp‑p) |
| Frequently Asked Questions |
|
Q: What kind of output does MLE‑TN16A provide — transistor or relay?
A: MLE‑TN16A provides transistor (open‑collector sink) outputs, not relay contacts.
Q: What voltage and current loads can I connect to MLE‑TN16A outputs?
A: The module supports DC loads with supply voltage 10.2–26.4 V (nominal 12 V or 24 V). Max
output current per channel is 0.2 A; per COM (common return) up to 2 A.
Off‑state leakage is minimal (≤ 0.1 mA).
Q: Is the response time fast enough for typical PLC digital output tasks?
A: Yes — response (both ON and OFF) is ≤ 1 ms under rated resistive load, sufficient for
many control tasks (e.g. driving indicators, DC coils,
logic‑level inputs on other devices).
|
