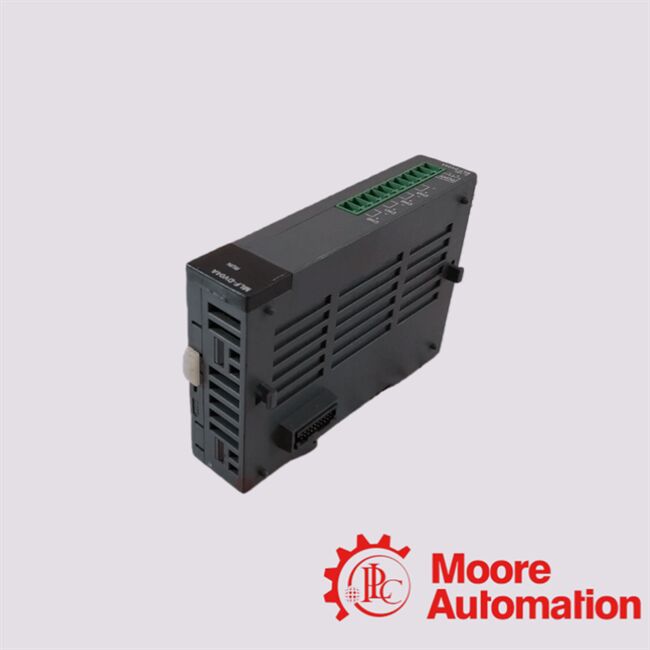

MLF−DC04A HONEYWELL Digital Output Module
| Product Description |
|
The MLF‑DC04A is an analog output module (current‑output) designed for the ML50 / MLF PLC system from Honeywell.It provides 4 output
channels per module (i.e. 4 analog outputs).The module converts 12‑bit binary data from the PLC (digital representation) into corresponding
analog current signals, for interfacing with field devices (e.g. controllers, actuators, transducers) that accept 4–20 mA or 0–20 mA
analog input.It is meant as an I/O expansion module — you mount it on the ML50 I/O rack alongside other
modules (digital I/O, analog I/O, counters, communication modules, etc.) to
extend the PLC’s output capabilities.
|
| More Technical Data |
| Module type |
Analog output — current output module |
| Number of input points |
4 channels per module |
| Output signal types / ranges |
DC 4–20 mA or DC 0–20 mA (load resistance ≤ 510 Ω) |
| Conversion / update speed |
Up to 1.0 ms per channel |
|
|
Q: Is MLF‑DC04A a digital output module?
A: No — MLF‑DC04A is an analog output module (current output). It converts PLC binary data into analog current signals (e.g. 4‑20 mA), not digital on/off signals.
Q: What kinds of devices or loads can I drive with the outputs of MLF‑DC04A?
A: Because outputs are analog current (4–20 mA or 0–20 mA), you should connect devices that accept analog current inputs — e.g. actuators, control
valves, transmitters, analog controllers, signal conditioning modules, or any sensor/actuator expecting
a standard 4–20 mA control signal.
Q: What is the resolution and accuracy of the output signal?
A: The module provides a resolution of 1/4000 of full scale — e.g. for 4–20 mA, the step size is roughly 0.005 mA (5 μA).
The accuracy is specified as ±0.5% or better.
|
