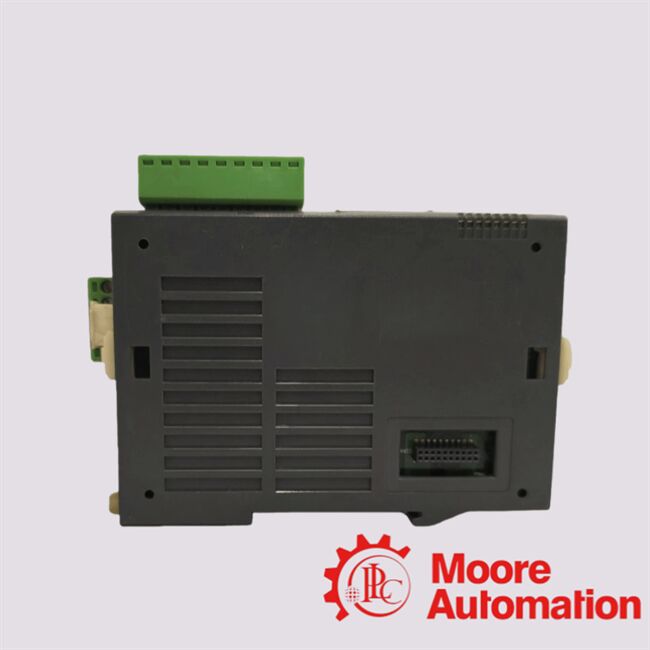

MLM-DR16S HONEYWELL PLC Power Supply Module
| Product Description |
|
The MLM-DR16S is a base module (main unit) in the MasterLogic ML50 PLC series. As a base module, it includes the CPU, the 24 V DC power
supply, and a set of built-in I/O channels — specifically, 8 digital inputs and 8 relay outputs.It serves as the “heart” of a compact
PLC system: providing control logic, I/O interface, power, and infrastructure for expansion modules.
|
| More Technical Data |
| Power supply voltage |
24 V DC (internal power supply) |
| I/O configuration (built‑in) |
8 digital inputs (24 V DC) + 8 relay output channels (relay contacts) |
| Relay Output Ratings |
2 A at DC 24 V (resistive load) or AC 220 V (cos φ = 1) per output; 5 A per COM (common) |
| Frequently Asked Questions |
Q: Is MLM‑DR16S just a power supply module?
A: No — while it provides 24 V DC power to the system, MLM‑DR16S is a base PLC module: it includes CPU, built-in digital I/O (inputs + relay outputs), and the power supply. It is the “core” module for a compact ML50 PLC system.
Q: What kinds of outputs does it have?
A: It provides relay outputs (8 outputs), capable of switching DC 24 V or AC 220 V (resistive loads). Relay contacts give galvanic isolation
suitable for controlling a range of loads, including AC devices if within rating.
Q: What kinds of inputs does it support?
A: It has digital inputs — 8 channels, DC 24 V. These are used for sensing discrete signals (e.g. switches, sensors).
|
