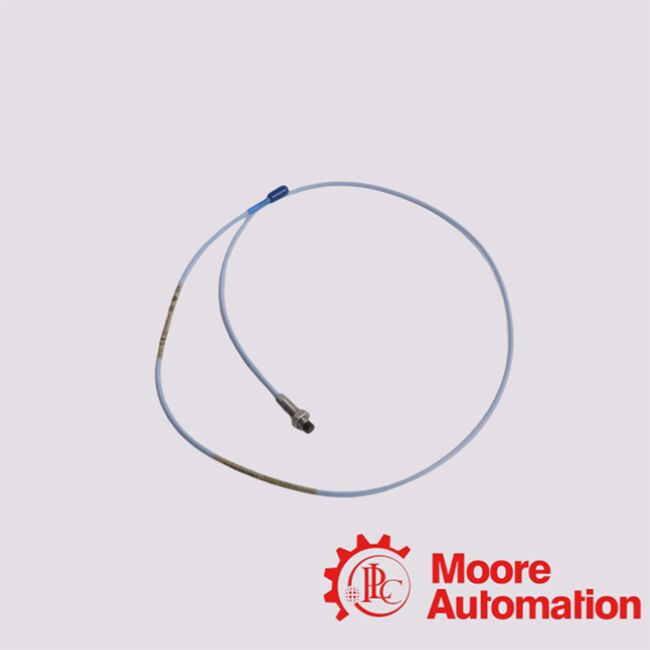

330101-00-12-05-02-02 Bently Nevada Proximity Probe
Description
The “330101” designation indicates this is part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System.A “proximity probe” (also known as an eddy-current probe or proximity transducer) — it
does not touch the measured shaft or conductive part. Instead it senses the distance (clearance, radial position, displacement, or vibration) between its tip and a conductive metal surface
(e.g. a rotating shaft, bearing journal, or rotor).The probe alone is only part of a transducer system: a full 3300 XL system requires the probe, an extension cable, and a
Proximitor® sensor (sometimes called “Proximitor sensor head”).When assembled within the full system, it outputs a voltage proportional to the gap
between the probe tip and the target surface. That voltage can be used to derive static position, clearance, shaft
displacement, or dynamic vibration (depending on the monitoring setup).
|
Frequently Asked Questions of 330101-00-12-05-02-02
|
|
Q: What does “proximity probe” mean in this context?
A: It refers to a non-contact eddy-current sensor tip that detects the distance between itself and a conductive target, outputting a voltage proportional
to that distance.
|
|
Q: Can I use the probe alone?
A: No — the probe is only one part of a full transducer system. A complete system must include the probe, an extension
cable, and a Proximitor® sensor.
|
|
Q: What measurements can I get with it?
A: Static shaft position or clearance, radial displacement, shaft runout or eccentricity, dynamic
vibration, and — depending on setup — speed/phase reference.
|
