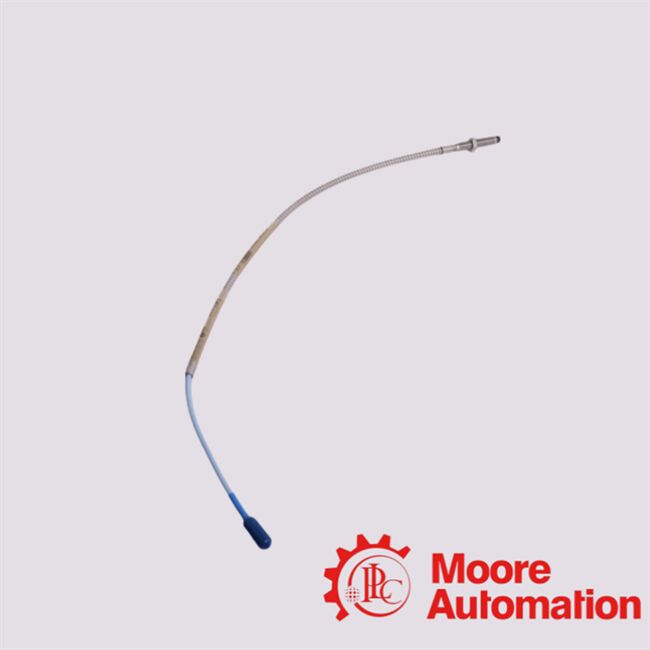

330101-00-20-05-02-02 Bently Nevada Sensor Probe Cables
Description
The 330101-00-20-05-02-02 belongs to the 3300 XL 8 mm proximity transducer system — meaning it's a proximity probe plus extension cable assembly, not just a probe tip alone.In a full system setup, this
assembly connects to a Proximitor® sensor (or “sensor head”) to form a complete eddy-current non-contact displacement / vibration transducer system.The system produces an output voltage
proportional to the distance (gap) between the probe tip and a conductive target surface (e.g., a shaft or rotor), allowing measurement of static
position (clearance, clearance changes) or dynamic motion (vibration, displacement).
|
Frequently Asked Questions of 200350-09-00-01
|
|
Q: Is this just a probe or does it include a cable?
A: It includes both the proximity probe and the extension cable — i.e. it’s a probe-plus-cable assembly, not just the tip. This allows direct
connection to the Proximitor sensor.
|
|
Q: Do I need something else to use it?
A: Yes — you still need a matching 3300 XL Proximitor® sensor (or transducer head) for the system to output usable
voltage/displacement data. The cable-probe alone does not provide a complete measurement.
|
|
Q: What target material should the probe measure?
A:The standard calibration is for conductive steel targets (by default, AISI 4140 steel). If you use
another material, you may need special calibration for accurate readings.
|
