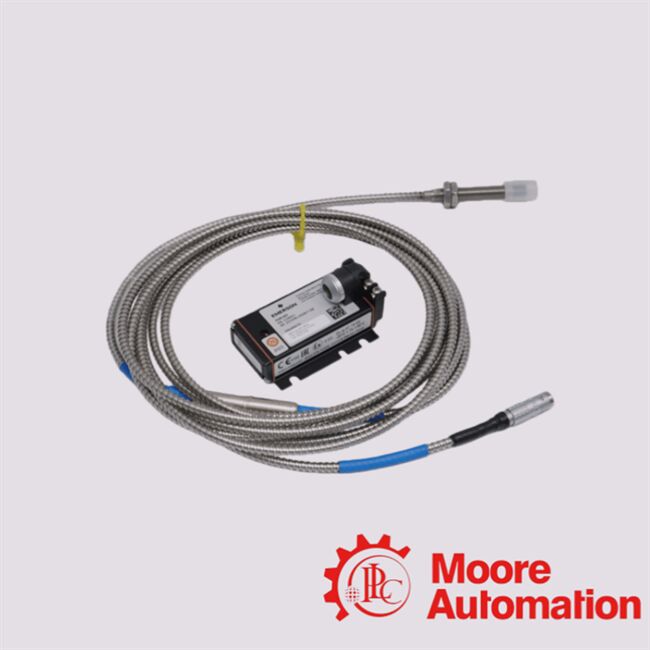

PR6423/01K-010 Emerson eddy current sensor

The PR6423 series is a non‑contact eddy‑current displacement (proximity) sensor — used for measuring static and dynamic shaft displacement and motion in rotating machinery

 (e.g. turbines, compressors, pumps, gearboxes).It measures radial and axial shaft displacement/position, shaft eccentricity, vibration/oscillation, oil‑film

 thickness / bearing clearance, axial thrust, differential expansion, valve/air‑gap clearance — essentially any clearance or movement between a

metal rotating shaft and a stationary surface.In short: PR6423 is a high‑precision, non-contact sensor for monitoring shaft

 motion / displacement / vibration in critical rotating equipment; “/01K‑010” would be one variant in that family.

0.5 mm (≈ 20 mils) — i.e. the calibrated gap between sensor tip and target at zero displacement.

Installation and Safety Notes

Based on the manufacturer’s general guidelines for PR6423 sensors.

• Non‑contact mounting is essential: The sensor tip must face the target shaft surface, with a fixed “air‑gap” (nominal ~ 0.5 mm). The measurement is based on changes in that gap; the sensor must not touch the shaft.

• Proper alignment (perpendicularity): The sensor probe should be mounted perpendicular to the measured surface; any tilt can introduce measurement errors, especially during shaft rotation. Even small angular deviations can cause significant measurement errors under dynamic conditions.

• Mounting thread / mechanical mount: Use the correct mounting (M10×1 or 3/8‑24 UNF depending on variant) as specified by the model. Proper mechanical fixation is required — avoid vibration or shifting of the probe holder/bracket, as movement will distort readings.

• Cable handling: Use the specified cable type (PTFE-insulated or armored if specified). Respect minimum bend radius (standard cable: ≥ 25 mm; armored cable: ≥ 35 mm) to avoid damaging internal wiring or degrading signal integrity.

• Use of appropriate signal converter / conditioner: The raw eddy-current signal must be processed with a compatible converter (or monitoring system) to produce a usable analog output (voltage or current) for downstream instrumentation.

• Environmental & operational conditions: The sensor is designed for industrial conditions — high temperature, vibration, possible oil/mist exposure. Ensure installation environment matches or is within specified limits (temperature, protection rating, cable routing, sealing).

• Calibration upon installation: After mounting, set and calibrate the air-gap / zero-reference with the target shaft (or a calibration standard) per manufacturer instructions. Any reinstallation or sensor replacement should prompt re‑calibration.

• Compliance with standards (if needed): The PR6423 series is designed to meet industry standards for machinery monitoring (e.g. API 670, DIN 45670, ISO 10817‑1) — especially for critical turbomachinery applications.

• Suitability for hazardous environments (optionally): When used with proper signal conditioners and safety barriers, eddy-current sensors like PR6423 may be employed in hazardous/explosive atmospheres — but only if the complete system (sensor + converter + barrier) meets the applicable certification requirements; you should verify certification status per country/region.
